2008 Volvo XC70FACTORY OEM SERVICE PROCEDURE

Signal Description

General

All the values given below are between the respective terminal in column 1 and terminal #C1:10 in column 2 (power ground) unless otherwise stated in parenthesis after the table entry.

NOTE:

It is important to connect the breakout box and check the ground connections before starting to measure.

U= DC voltage in volts (V) UAC = AC voltage in volts (V)
Ubat = Battery voltage (V) f = Frequency in Hertz (Hz)
Ulow = Voltage approximately 0 V t = Time in seconds
PWM = Pulse width modulated signal as a %

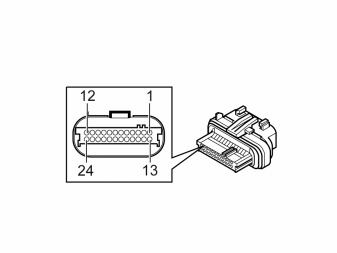

Fig 1: Connector Terminal Identification
GLL163444Courtesy of VOLVO CARS CORPORATION
SIGNAL TABLE


Connector C1
Breakout box terminal  Control module terminal  Signal type  Ignition off Active/Inactive  Ignition on Active/Inactive  Miscellaneous
#1 #C1:1 Heating coil forward-aimed camera Ulow
/ Ulow
Ulow
/ Ubat

#2 #C1:2 LED 1 left Ulow
/ Ulow
Ulow
/ Ubat
Pulse width modulation (PWM) signal
#3 #C1:3 LED 2 middle Ulow
/Ulow
Ulow
/ Ubat
Pulse width modulation (PWM) signal
#4 #C1:4 LED 3 right Ulow
/ Ulow
Ulow
/ Ubat
Pulse width modulation (PWM) signal
#5 #C1:5 -
#6 #C1:6 Communication CAN H
middle speed network

During communication the voltage is 1.5 - 2.5 V

#7 #C1:7 Communication CAN_L middle speed network During communication the voltage is 2.0 - 3.5 V
#8 #C1:8 Local CAN bus FLR, high signal
#9 #C1:9 Local CAN bus FLR, low signal
#10 #C1:10 Power ground Ulow
/ Ulow
Ulow
/ Ulow

#11 #C1:11 15-feed Ulow
/ Ulow
Ulow
/ Ubat

#12 #C1:12 Power supply Ulow
/Ubat
Ulow
/Ubat
Via relay, interior lighting CEM.
#13 #C1:13 -
#14 #C1:14 Ground, heating coil forward-aimed camera. Ulow
/ Ulow
Ulow
/ Ulow

#15 #C1:15 Indicator visual collision warning ground Ulow
/ U low
Ulow
/ Ulow

#16 #C1:16 -
#17 #C1:17 -
#18 #C1:18 Communication CAN_H, Sensor-CAN During communication the voltage is 2.0 - 3.5 V Latest used on S60 (11-) and V60. Otherwise spare.
#19 #C1:19 Communication CAN_L, Sensor-CAN During communication the voltage is 1.5 - 2.5 V Latest used on S60 (11-) and V60. Otherwise spare.
#20 #C1:20 -
#21 #C1:21 -
#22 #C1:22 -
#23 #C1:23 -
#24 #C1:24 -

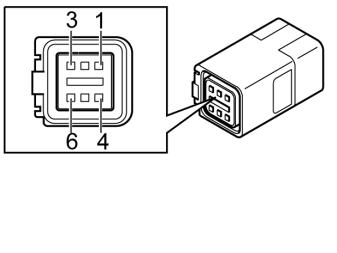

Fig 2: Connector Terminal Identification
GLL163446Courtesy of VOLVO CARS CORPORATION
Connector C:2
Control module terminal Signal type Ignition on Active/Inactive Miscellaneous
#C1:1 Forward facing camera, communication data 0-4 V
#C2:2 Voltage supply, forward-aimed camera 4.4 V
#C2:3 Ground, forward-aimed camera Ulow
#C2:4 Forward-aimed camera, clock 0-4 V
#C2:5 Video return signal
#C2:6 Video signal 1.0 Vp-p
#C2-S Cable protective ground 0 V The video cable has protective grounding to counteract interference.
