Active On Demand Coupling (AOC)
Active On demand Coupling (AOC) and its Differential electronic module (DEM), has as its most important function to control the function for four-wheel drive, that is, power distribution between front and rear axle.
The system consists of an integrated clutch with a mechanical, a hydraulic, and an electronic part.

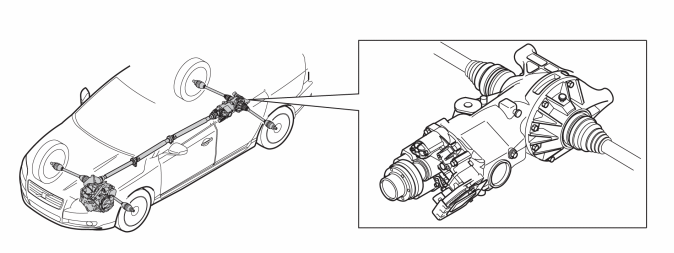

The clutch unit is located on the rear axle, between the final drive and the propeller shaft. The mechanical part is driven by the propeller shaft. The hydraulic part is driven by an electric pump.
Active On demand Coupling (AOC) generation 4 enables the following characteristics:
- Continuous control of four wheel drive, with electronic control of torque transfer.
- Rapid reactions
- No opposing forces when maneuvering or parking.
- Improved stability.
- Reduction of oversteering/understeering.
- Permanent capacity for four-wheel drive.
