Rear Seat Entertainment System (RSE), Generation 4.3 (2009-10): Design: Av-Panel
V70

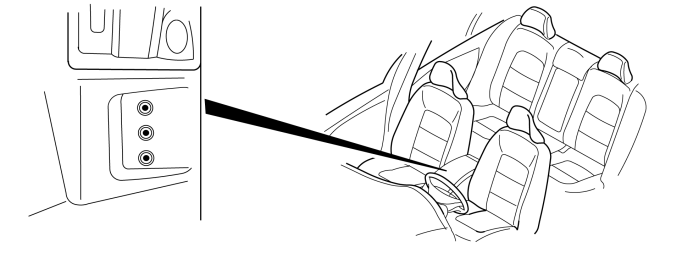

There is an AV panel with external input connections for audio/video in the storage tray in the center console in front of the DVD player.
This input can be used to feed standard AV signals to the system from e. g. a video camera, video games console, VHS video, portable DVD or CD player.
All inputs on the AV-panel are directly connected to Rear seat entertainment module (RSE)/DVD-player.
