Wheel Sensor 7/31, 7/32, 7/56, 7/57: Check
Prerequisites (unless otherwise specified):
On special vehicles like police and taxi, all extra connected devices must be shut off as they may use any of the signal outputs in the table above.
- Breakout box connected.
- Sensor engaged.
- Ignition switch position II.

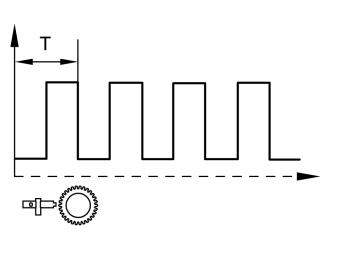

Create a temporary voltage feed between #1 on the breakout box via a resistor of 1kΞ© and the sensor's signal output (#7, #9, #11, or 14). Connect a voltmeter between the sensor's signal output and ground connection #16. Turn the wheel slowly:
Tooth against sensor U β ULow
Gap against sensor U β Ubat
