Wheel Sensor 7/31, 7/32, 7/56, 7/57: Terminal

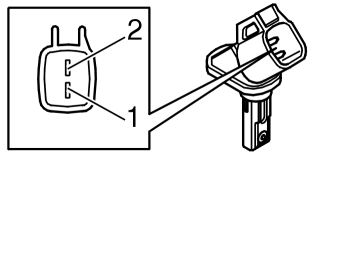

Front wheel sensor
Rear wheel sensor
| Connector terminal | Control module terminal | Signal type | Other |
|---|---|---|---|
| #1 | #45 | Power supply, front left | The sensor receives 12 V from the control module. |
| - | #14 | Signal output left front | Taxi signal. The signal can be used to check the wheel sensor's signal |
| #2 | #46 | Signal ground | The sensor is grounded through the control module. |
| #1 | #36 | Power supply, rear left | The sensor receives 12 V from the control module. |
| - | #9 | Signal output left rear | Taxi signal. Can be used to check the wheel sensor's function |
| #2 | #37 | Signal ground | The sensor is grounded through the control module. |
| #1 | #34 | Power supply, front right | The sensor receives 12 V from the control module. |
| - | #11 | Signal output right front | Taxi signal. Can be used to check the wheel sensor's function. |
| #2 | #33 | Signal ground | The sensor is grounded through the control module. |
| #1 | #43 | Power supply, rear right | The sensor receives 12 V from the control module. |
| - | #7 | Signal output right rear | Taxi signal. Can be used to check the wheel sensor's function. |
| #2 | #42 | Signal ground | The sensor is grounded through the control module. |
