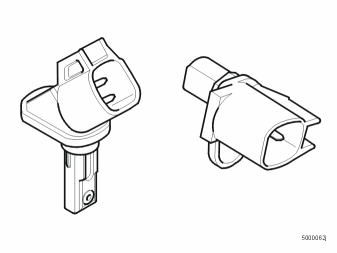

Wheel Sensor 7/31, 7/32, 7/56, 7/57: Notes
Type
Hall sensor (active sensor).
characteristic
When the toothed wheel rotates, a pulsed current signal (square wave) with fixed pulse ratio is generated. The frequency increases with speed.
Tooth at sensor
- I≈ 14 mA
Cover at sensor
- I ≈ 7 mA
Other information
Nothing
