2007 Volvo XC90 AWD L6-3.2L VIN 98 B6324SFACTORY OEM SERVICE PROCEDURE
Signal Specification
Signal specification

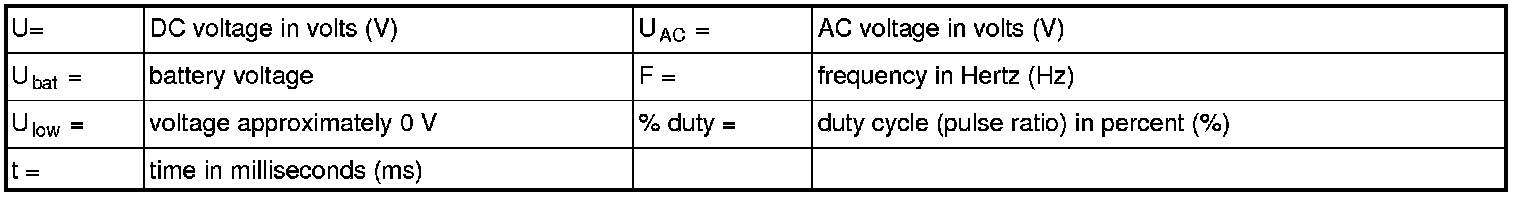

All values indicated below are between respective connection in column 1 and #A9 (#39 on the breakout box). If this is not the case, it is indicated within brackets.

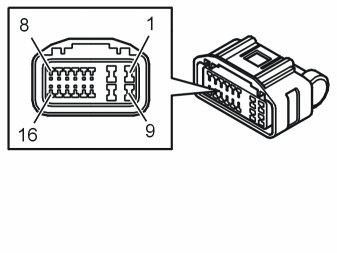

Connector A (16-pin) corresponds to #31 - #46 on the breakout box.

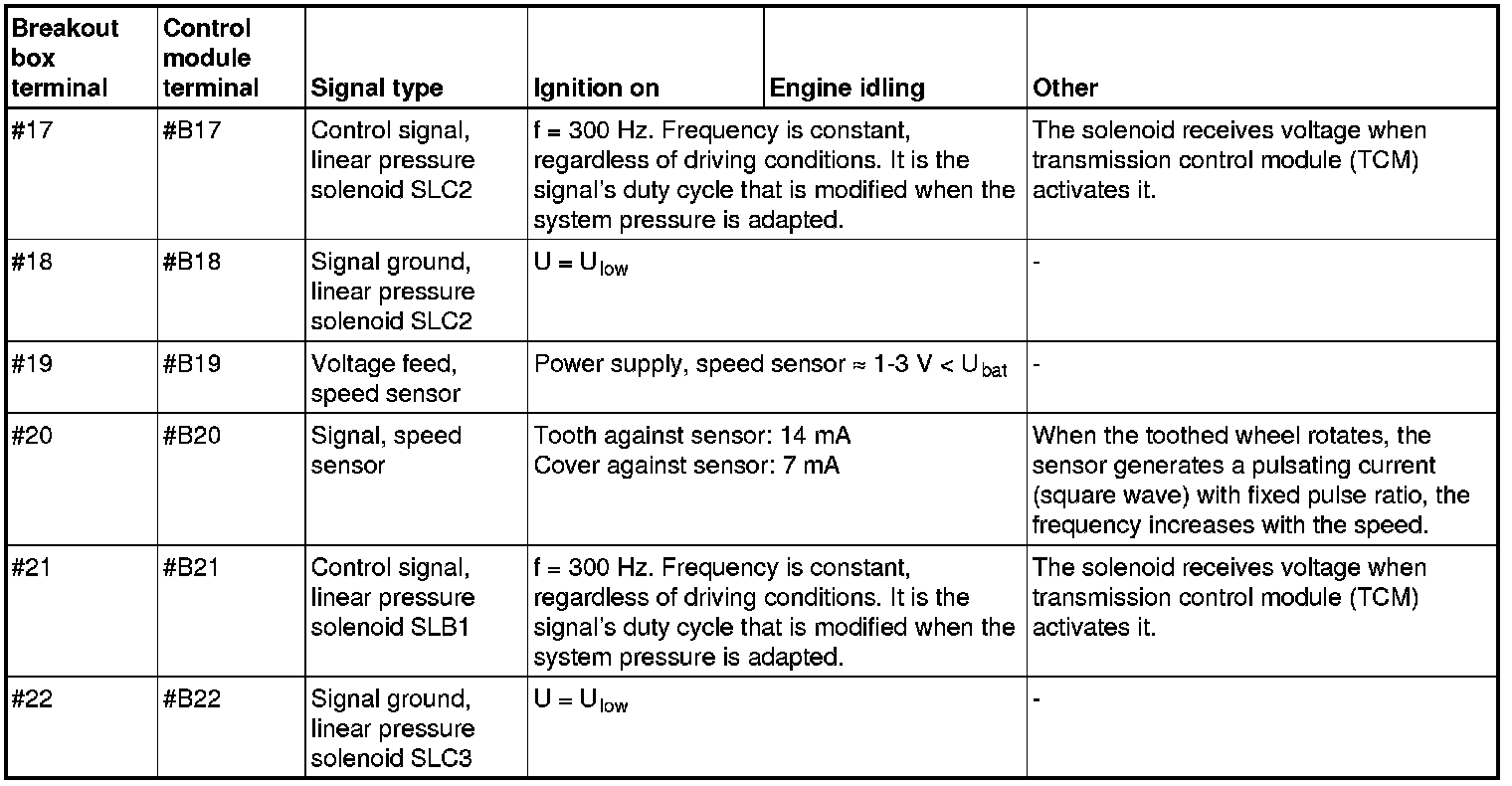

Connector B (22-pin to transmission) corresponds to #1 - #22 on the breakout box.
Note! Connect the breakout box and check the ground terminals before taking readings.

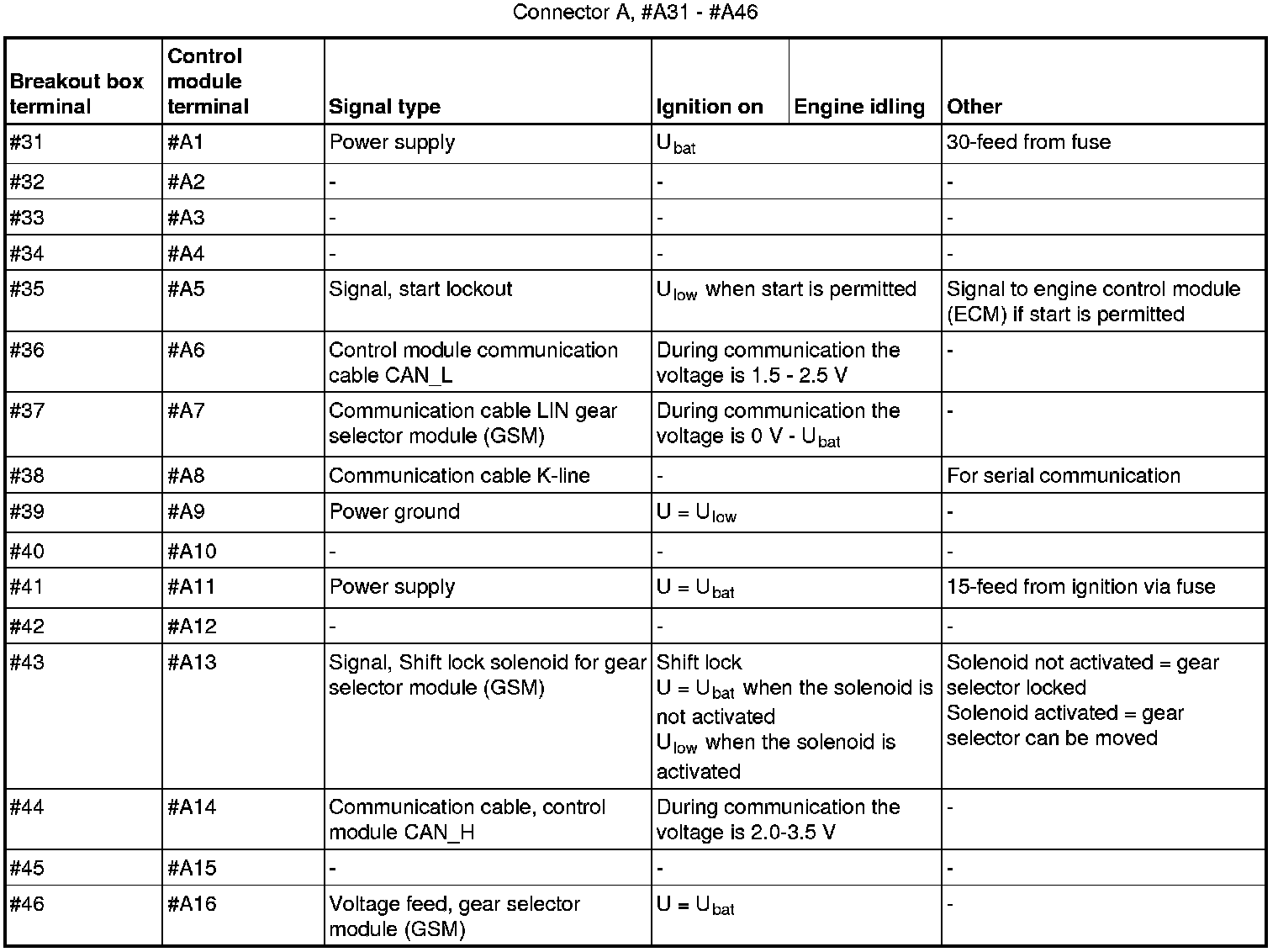

Connector A

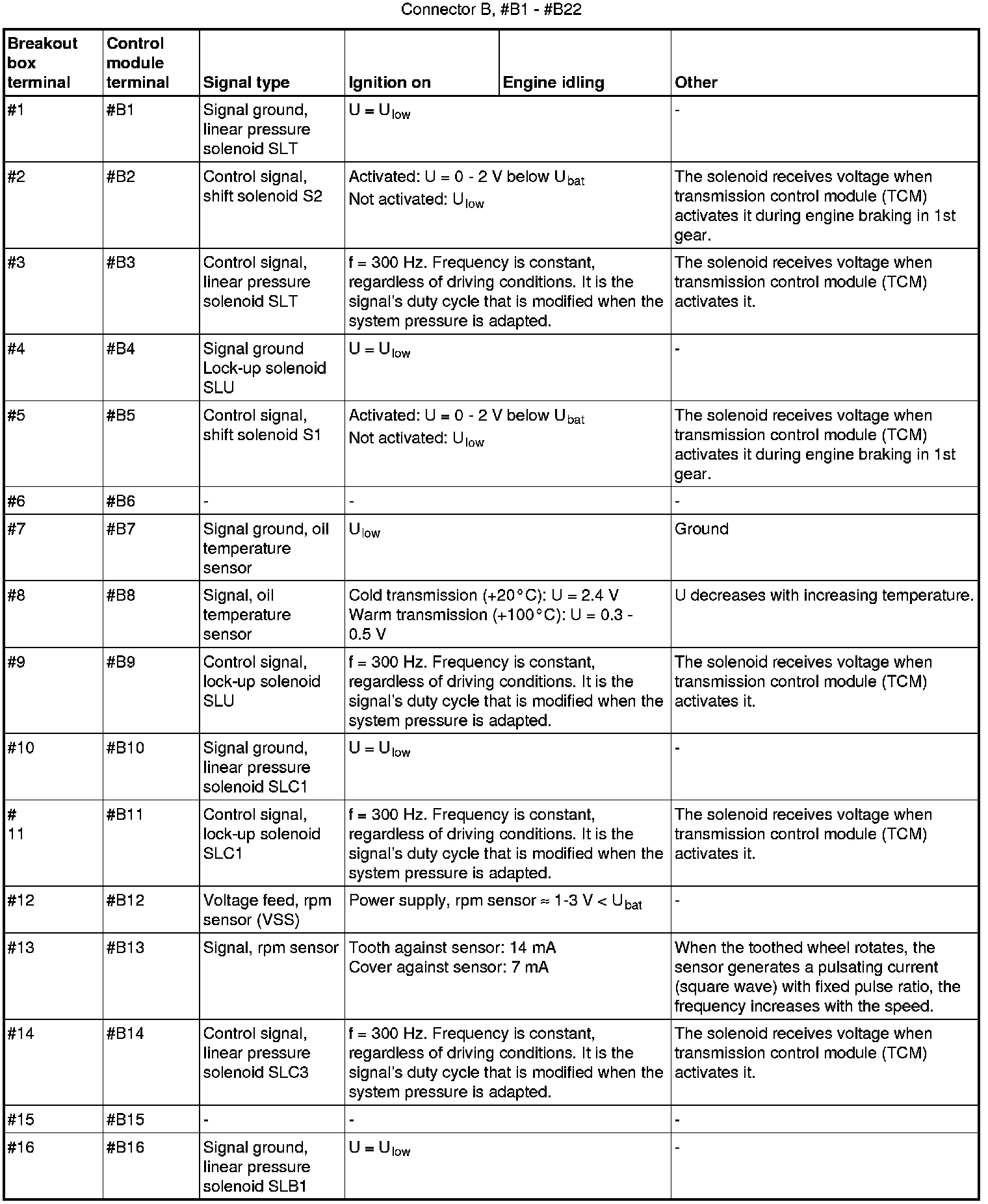

Connector B
