Connector Supplemental Restraint System Module (SRS), Repair

Connector Supplemental Restraint System Module (SRS), repair

Special tools: 951 2812 Terminal removal tool 951 2812 Terminal Removal Tool , 951 2637 Terminal removal tool 951 2637 Terminal Removal Tool.

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Connector, dismantling

Secondary lock

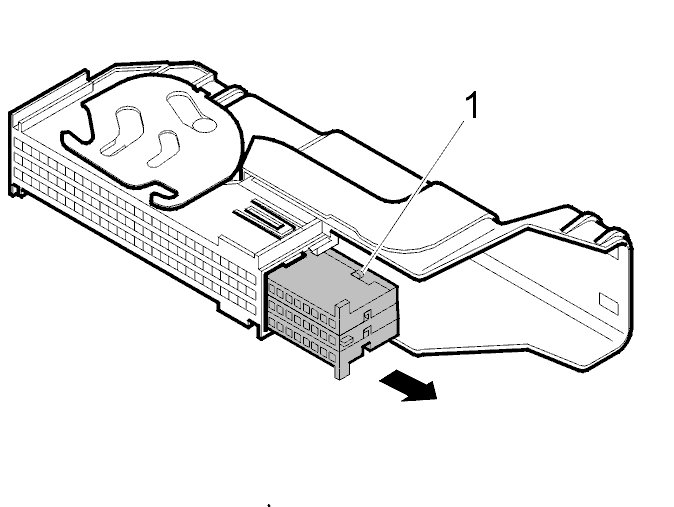

Press in the active catches on both sides of the socket housing and slide out the receptacle housings.

Caution! Disconnect and work with only one cable at a time to minimize the risk of mixing them up.

Primary lock

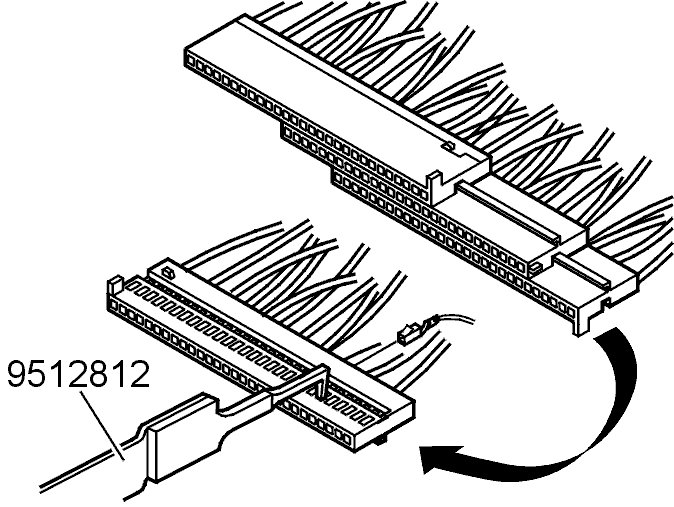

Press in the locking tab on the cable terminal and carefully pull out the cable and the cable terminal. Use tool 951 2812 Terminal removal tool 951 2812 Terminal Removal Tool or tool 951 2637 Terminal removal tool 951 2637 Terminal Removal Tool , as illustrated.

Connector, assembling

Primary locking
Check that the cable terminal is undamaged.
Press the cable terminal into the housing.
Check that the cable terminal is properly locked by pulling carefully on the cable.

Secondary locking
Press the secondary lock into place.
