2007 Volvo XC90 AWD L6-3.2L VIN 98 B6324SFACTORY OEM SERVICE PROCEDURE

Component Location, Central Electronic Module (CEM)






Location of components

Note! The illustrations in this service information are used for different model years and / or models. Some variation may occur. However, the essential information is always correct.

Location Of Components (Central Electronic Module - CEM):

Factory service manual diagram




central electronic module (CEM)
1. Central electronic module (CEM).

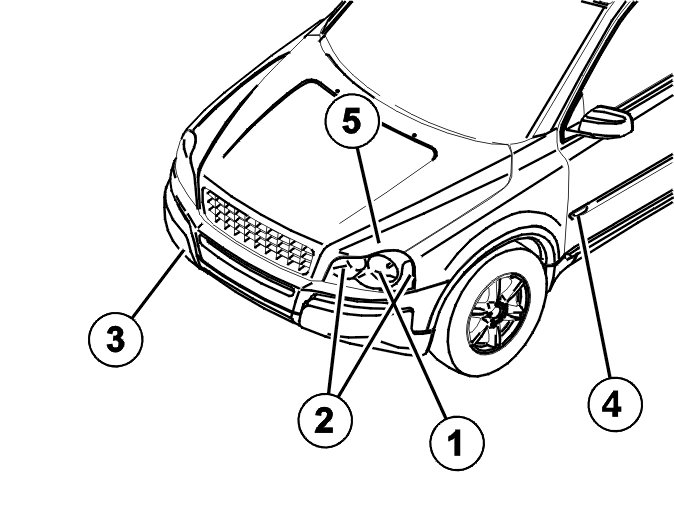

Location Of Components (Lighting Exterior, Front):

Factory service manual diagram




Lighting exterior, front
1. Headlamps
2. Front turn signal lamps
3. Front fog lamps
4. Front side turn signal flashers
5. Motor for headlamp beam height control.

(Location Of Components (Lighting Exterior, Rear):

Factory service manual diagram




Lighting exterior, rear
1. Lower tail lamp
2. Upper tail lamp
3. Tail lamps in the bumper
4. High level stop lamp
5. License plate lighting.

Location Of Components (Inner Lighting) (Part 1):

Factory service manual diagram




Inner lighting
- 1. Lighting glove compartment
- 2. Courtesy lighting
- 3. Ignition key lighting
- 4. Dashboard environment panel lighting
- 5. Door switch
- 6. Gear selector lighting.

Location Of Components (Inner Lighting) (Part 2):

Factory service manual diagram



- 7. Interior lighting and the upper electronic module (UEM)
- 8. Vanity mirror lighting
- 9. Rear reading lamp
- 10. Cargo compartment lighting.

Location Of Components (Warning and Indicator Lamps):

Factory service manual diagram




Warning and indicator lamps
1. Seat belt reminder
2. PAD lamp
3. MIL lamp
4. Alarm diode
5. Indication reduced alarm
6. Indicator lamp hazard warning signal flashers
7. Indicator lamp fog lamp front
8. Indicator lamp fog lamp rear.

Location Of Components (Sensors):

Factory service manual diagram




Sensors
1. Outside temperature
2. Fuel level (Gasoline/Diesel)
3. Clutch pedal
4. Accelerator pedal (AP) position sensor
5. Twilight sensor
6. Sun sensor.

Location Of Components (LIN Nodes):

Factory service manual diagram




IN nodes
1. Combustion preheater module (CPM)
2. Light switch module (LSM)
3. Steering wheel module (SWM)
4. Alternator control module (ACM)
5. Blind Spot Information System (BLIS).
