2007 Volvo XC90 AWD L6-3.2L VIN 98 B6324SFACTORY OEM SERVICE PROCEDURE
Joining the Cables

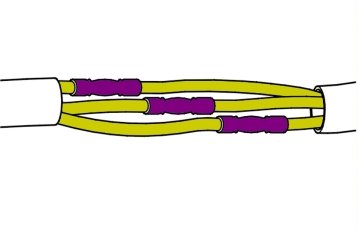

Joining the cables
Connecting
See information about SRS cables: Refer to: Cable harness SRS system, repair Procedures
Perform battery disconnection. Refer to: Battery, disconnecting Battery Disconnecting
See information about cable terminals surface treatment. Refer to: Cable terminals surface treatment Cable Terminals Surface Treatment

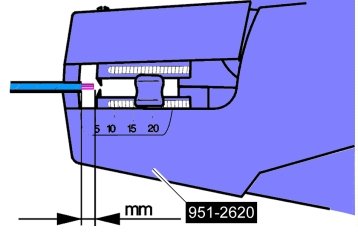

951 2620 Stripping tool 951 2620 Stripping Tool

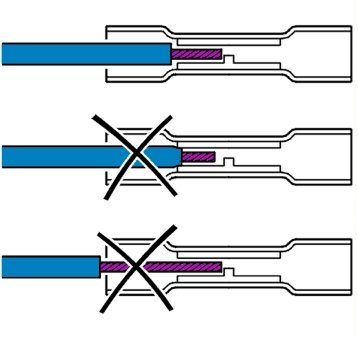

See information about stripping length. Refer to: Junction sleeve Junction Sleeve

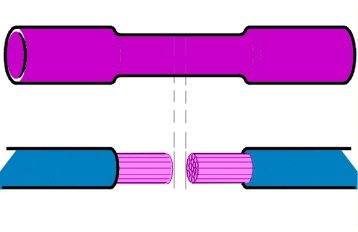

Junction sleeve
951 2785 Crimping tool 951 2785 Crimping Tool

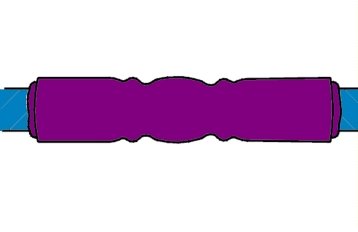

Caution! Protect the surroundings from the heat.
951 2850 Hot air gun 951 2850 Hot Air Gun 951 2851 Hot-air gun 951 2851 Hot Air Gun 951 2777 Hot-air gun 951 2777 Hot Air Gun
