2007 Volvo XC90 AWD L6-3.2L VIN 98 B6324SFACTORY OEM SERVICE PROCEDURE
Checking the Status, SLT
Checking the status, SLT

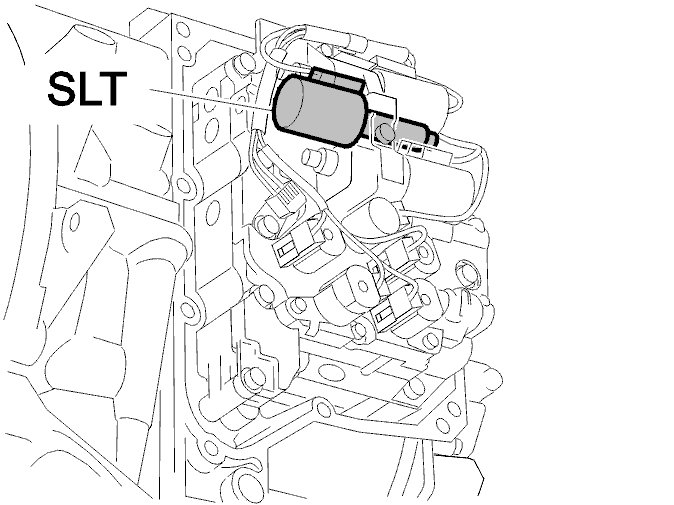

- Check the resistance of the throttle solenoid (SLT).
Check that the resistance of the solenoid is between 4.5-5.5 ohms.
Other information:
- For information about signal specifications, see Signal description. Transmission control module (TCM), AW50/51 AWD Signal Description, Transmission Control Module (TCM)
- To connect the breakout box, see Connecting the breakout box Connecting the Breakout Box
Is the resistance between 4.5-5.5 ohms?
Yes - Procedure complete
No - Incorrect resistance value
-------------------------------------------------
Incorrect resistance value
Replace the control system solenoid.
Other information:
- To access and replace the control system solenoid, see
-------------------------------------------------
