2007 Volvo XC90 AWD L6-3.2L VIN 98 B6324SFACTORY OEM SERVICE PROCEDURE
Variable Induction System: Service and Repair
Distribution damper intake manifold
Operation number: 25132-2
Note! Some variation in the illustrations may occur, but the essential information is always correct.
Removal
Note! Removal steps in this procedure may contain installation details.
Remove the intake manifold. Refer to: Induction pipe, B6324S Service and Repair.

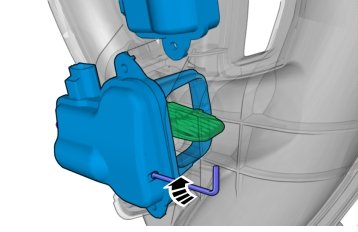

If the damper has jammed in the open position it must be screwed back as illustrated.
Make a hole at the mark and screw clockwise to close the damper.
Use: Allen key, 3 mm.
Installation
To install, reverse the removal procedure
