2007 Volvo XC90 AWD L6-3.2L VIN 98 B6324SFACTORY OEM SERVICE PROCEDURE
Specifications, Mechanical
Engine

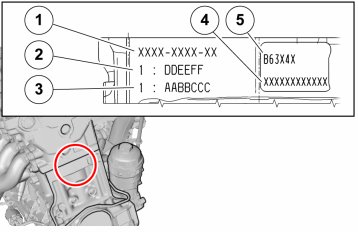

Marking
1. P/N
2. Cylinder class
3. Bearing class
4. Engine serial number
5. Engine type
General data

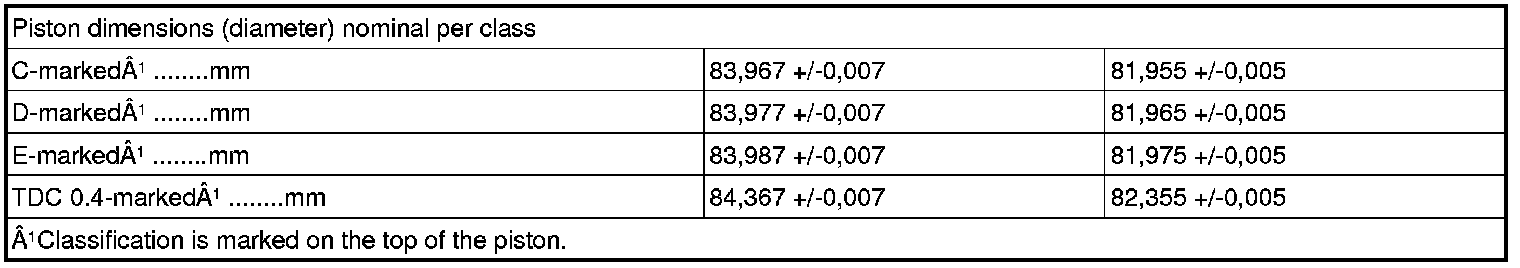

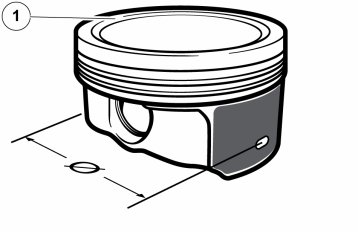

Pistons
Piston running clearance

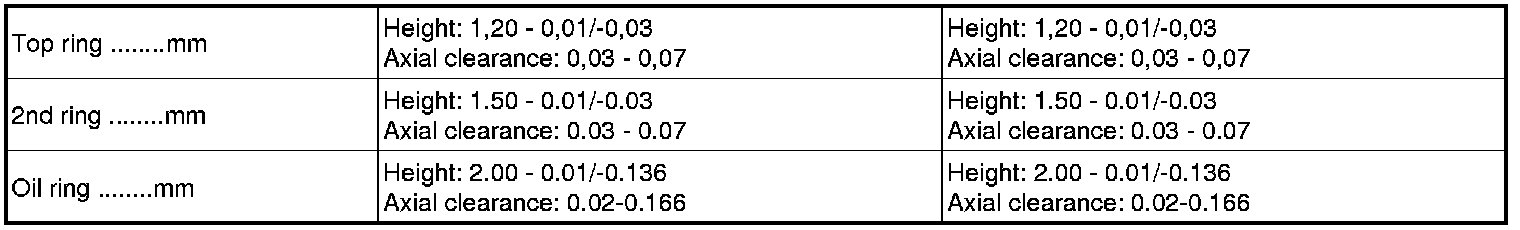

Piston rings
Piston pin

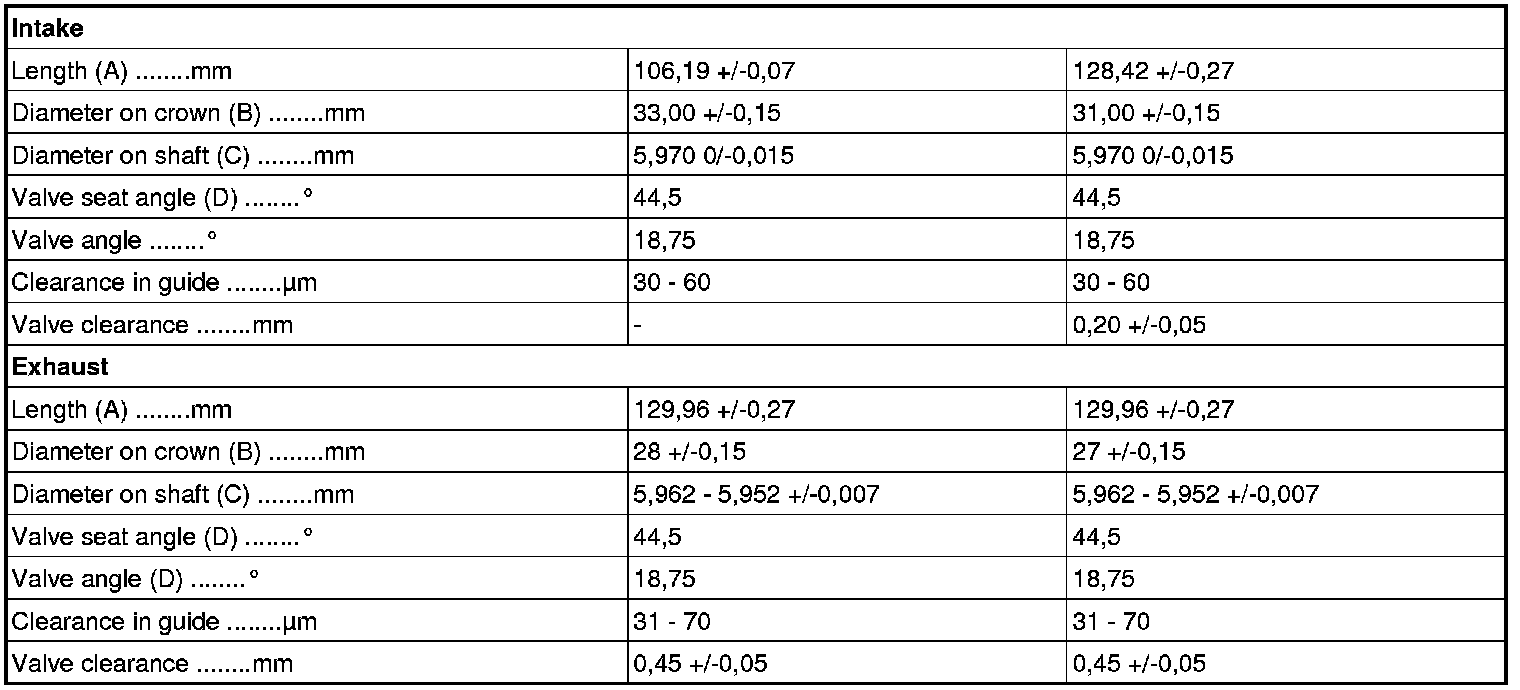

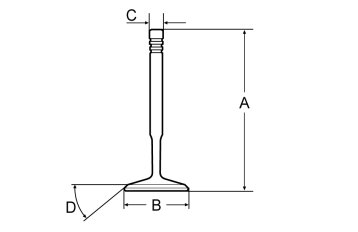

Valves
Valve seats
Tappets
Valve springs

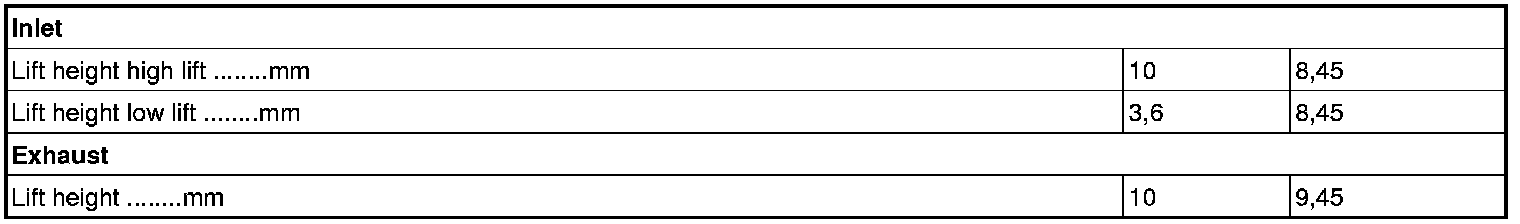

Camshafts

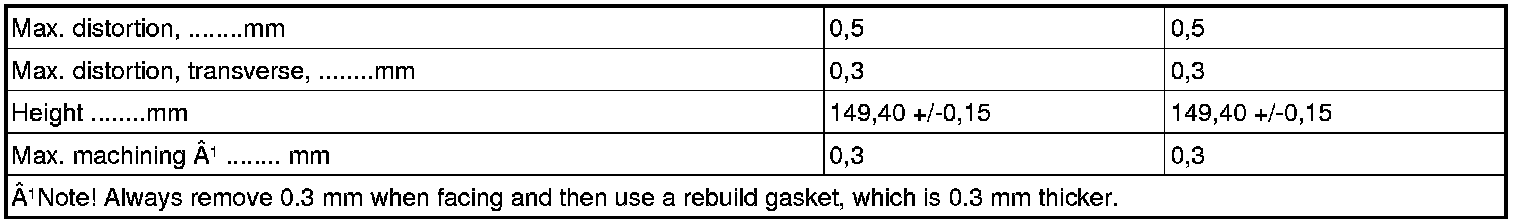

Cylinder head
Classification of main bearings

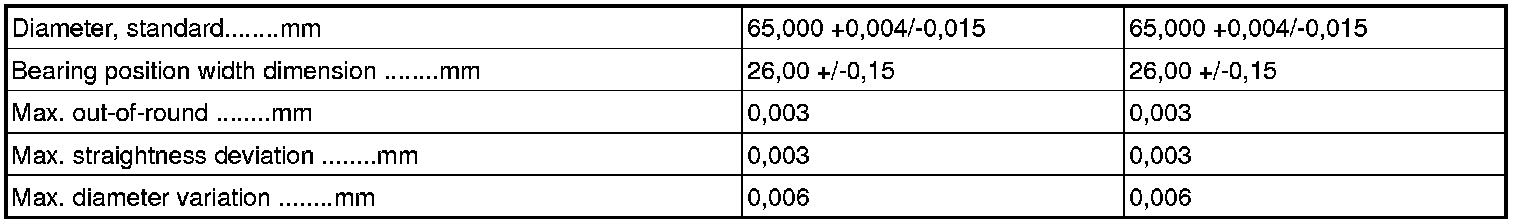

Crankshaft
Big end journals

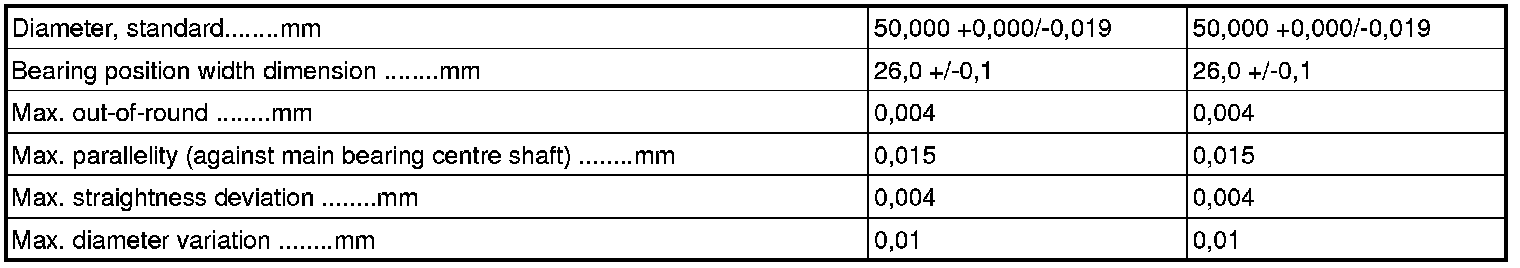

Main bearing journals

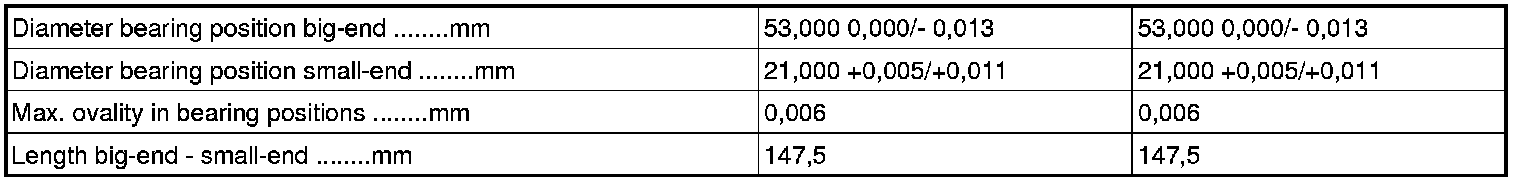

Connecting rods

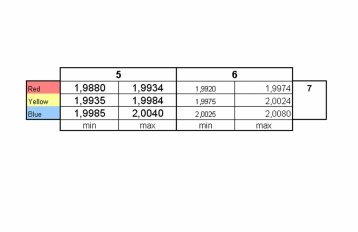

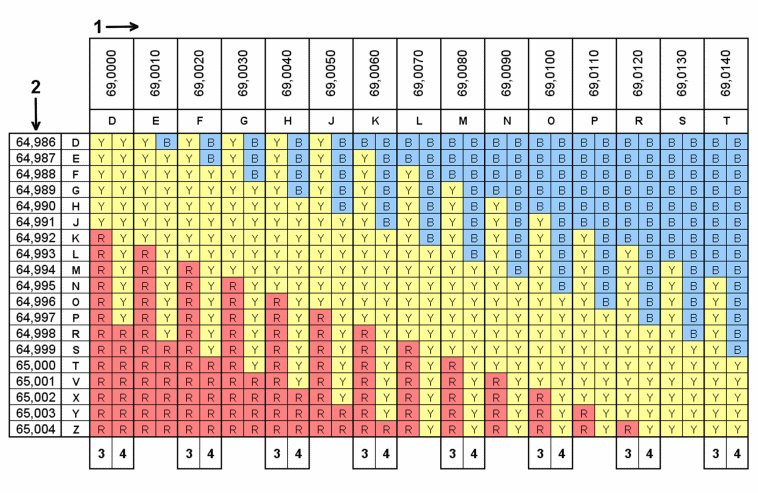

Main bearing classes
1. Classification cylinder block
2. Classification crankshaft
3. Cylinder block
4. Intermediate section
5. Main bearing
6. Throw-out bearing
7. Thickness
