2007 Volvo XC90 AWD L6-3.2L VIN 98 B6324SFACTORY OEM SERVICE PROCEDURE
Control Modules
Control Modules

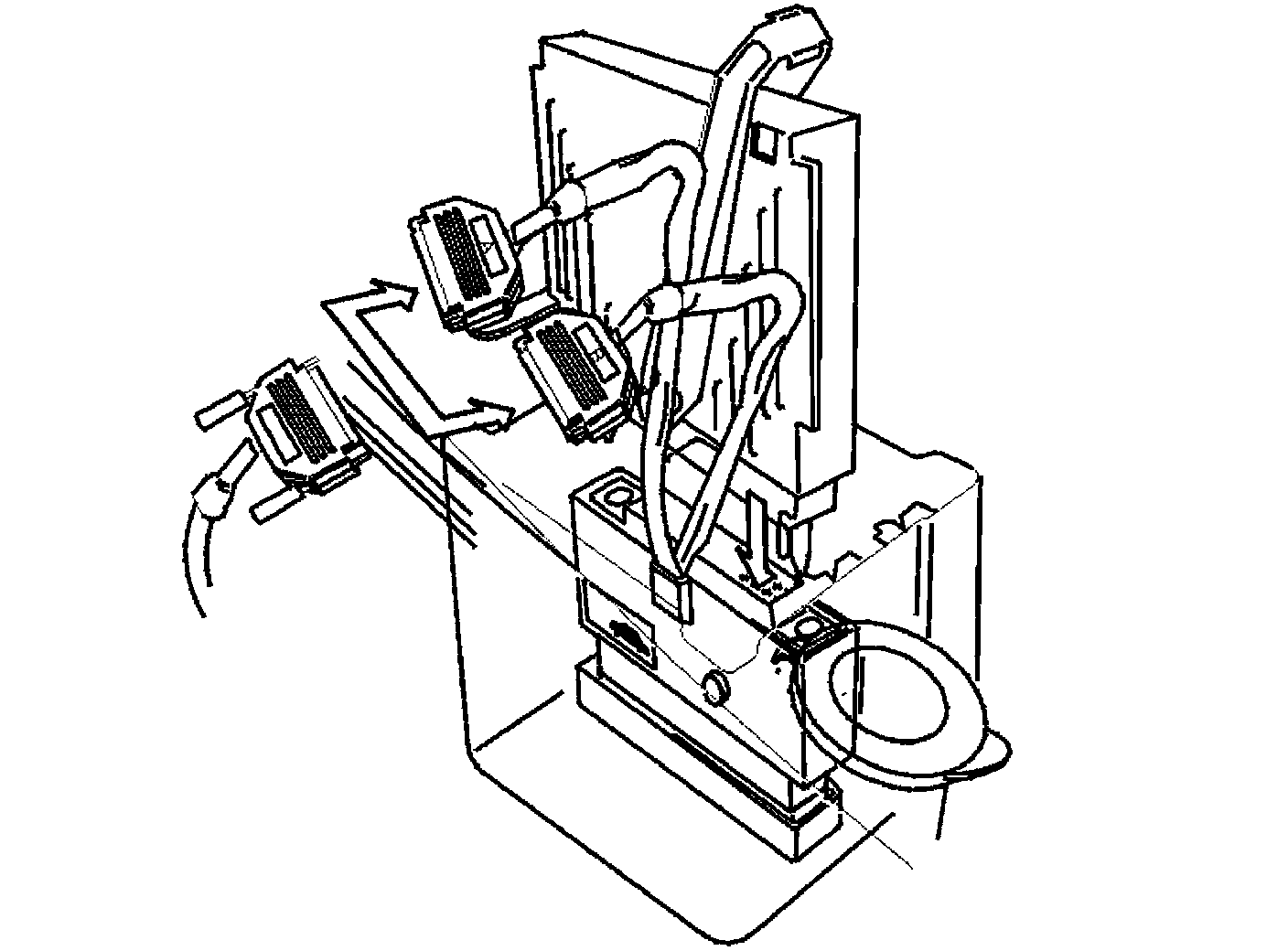

Connecting and disconnecting control modules
Always switch off the ignition before connecting and disconnecting control modules, connectors and the breakout box.
The ignition must be switched off when taking readings with an ohmmeter.

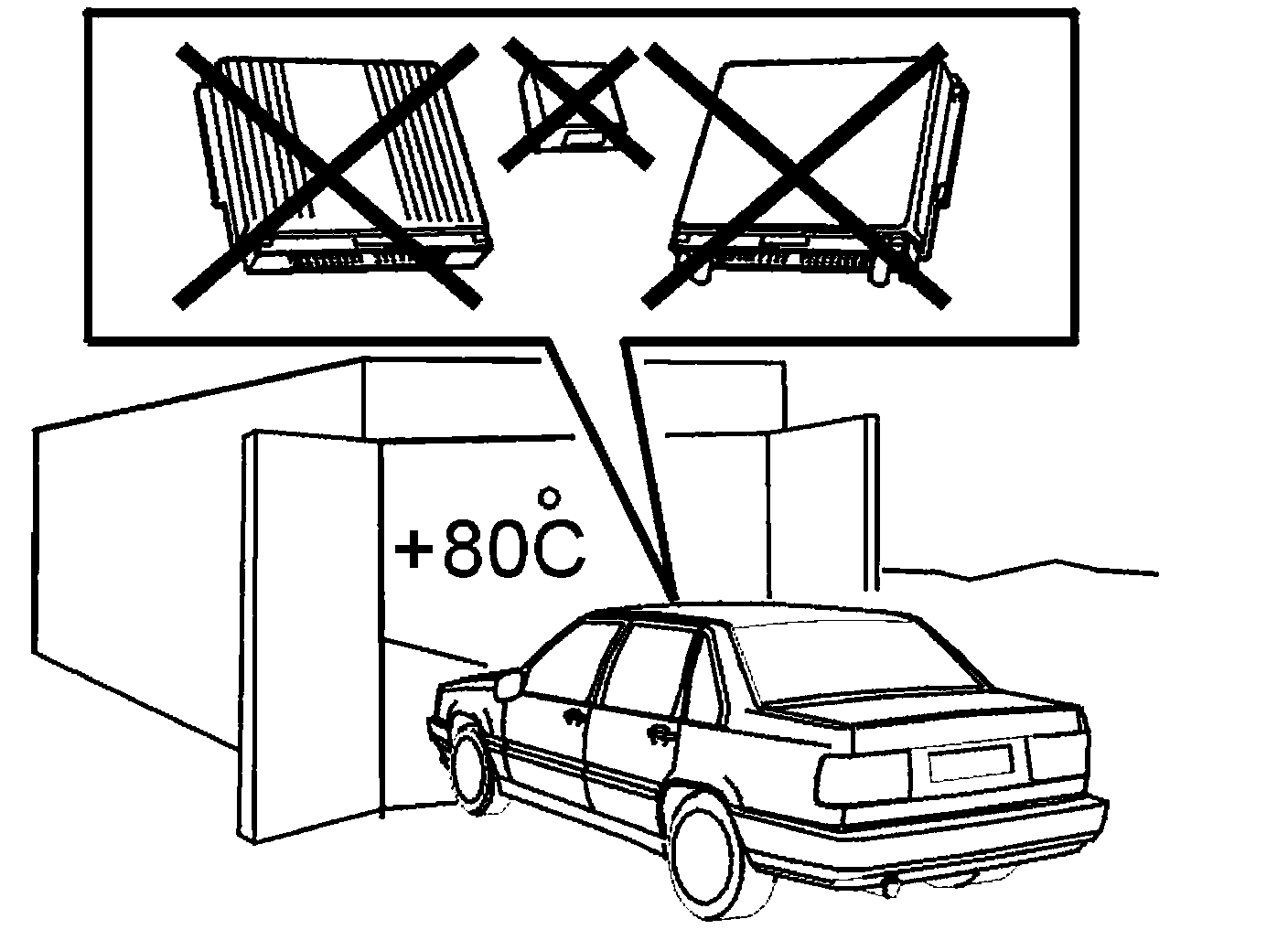

Temperature
The control modules must not be heated to above 80 degree C. Remove control modules when stoving for example.
Arc welding
Always disconnect the battery negative lead to prevent a short-circuit.
Position the welding ground as close to the welding site as possible, otherwise different ground potentials may be generated in different components.
When welding close to an electronic module, the unit must be removed to avoid heat damage.
Replacement
Do not replace a control module without checking its wiring and components. Otherwise the new component may be damaged in the same way as the old one.
