2007 Volvo XC70FACTORY OEM SERVICE PROCEDURE

Outer temperature sensor

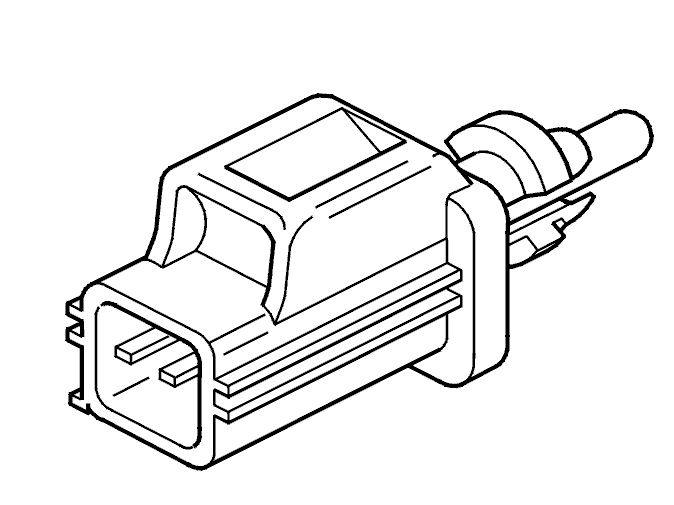

Fig 1: Identifying Outside Temperature Sensor
GLL103190Courtesy of VOLVO CARS OF NORTH AMERICA.

NTC resistance.

Temperature (Β°C) 0 10 20 25 30
R (Ξ©) 6318 3857 2424 1941 1513
V (Volts) 4.32 3.97 3.54 3.30 3.00
