Checking control panel terminals
Check that the control panel is correctly connected to the seat.
Check the control circuit between #C4 and #C5. Check for an open-circuit. See Open-circuit, permanent faults .
Remedy as necessary
Other information:

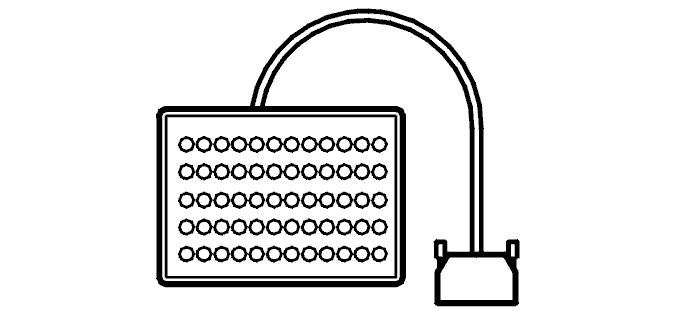

- To connect the breakout box, see Connecting the breakout box, power seat module (PSM)
- For information about signals, see Input signals from the control panel .
