Control Module

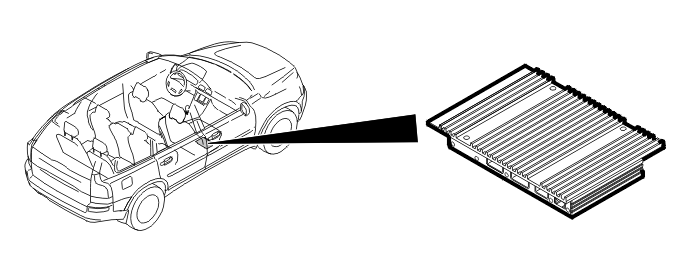

The audio module is an amplifier which is connected to the MOST network. It has the following functions:
- to carry the sound signal transmitted on the MOST network out to the directly connected loudspeakers and to the headsets as analogue signals
- to carry voice messages from the microphone, out on the MOST network.
- to transmit requests from the headset panel to change to the next or the previous track or to change the sound source.
If there is a subwoofer module installed on the MOST network, the audio module can process the incoming signal and transmit it to the subwoofer module.
The following versions of Audio module are available:
- Headset panel
- Headset panel
Audio module and have 4x40 W output and has 5x130 W.
Each version of the audio module (AUD) has a different number of loudspeakers and different loudspeaker models.
