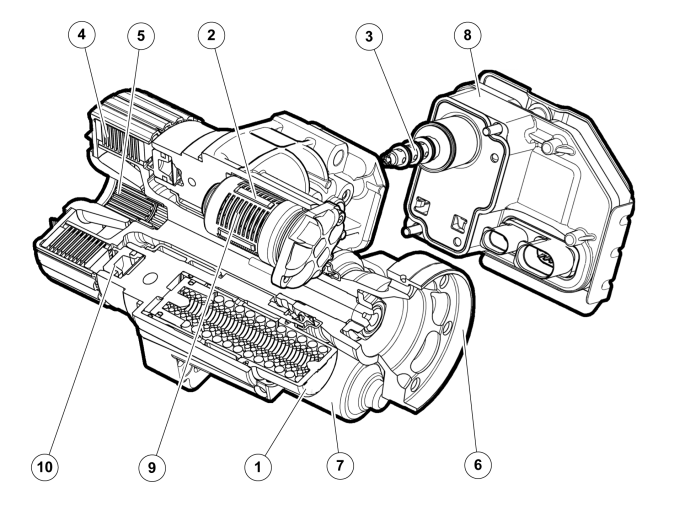

Clutch Unit And Control Module
- Accumulator
- Oil filter
- Pressure reducing valve
- Inner and outer wet clutch plates
- Inner connection hub with splines for output shaft. The hub has a sinusoidal cam curve
- Input shaft
- Electrical feed pump.
- Differential electronic module (DEM)
- Non-return valve
- Annular piston
The Differential Electronic Module (DEM) is fitted on the clutch unit housing.
The Differential Electronic Module (DEM) communicates with other control modules via Controller Area Network (CAN) communication:
The control module has integrated diagnostics for its own components and functions.
