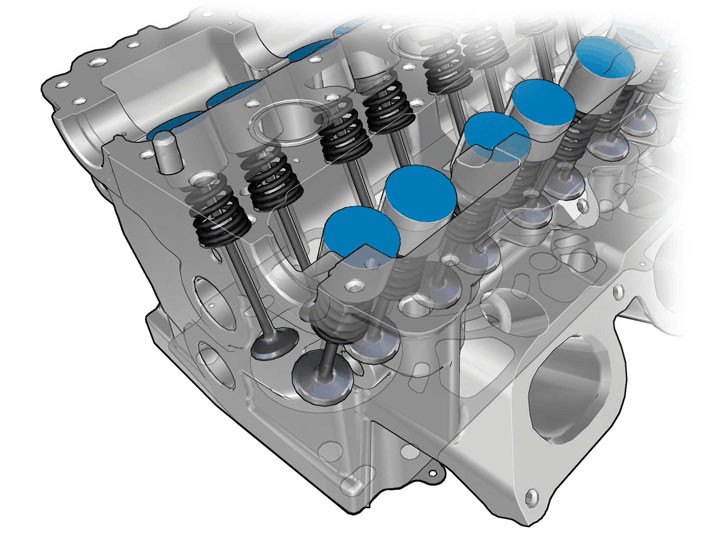

Valve Depressor
Valve depressors without CPS -functionality (C amshaft P rofile S hifting) have a coating of DLC (D iamond L ike C arbon).
It is the tops of the valve depressors that are coated with DLC. The layer with diamond-like carbon structure has a depth of 2μm, is very hard and has self-lubricating properties. The surface reduces the friction against the camshaft lobes and thus gives lower fuel consumption and longer service life.
Thanks to very good adhesion and toughness the DLC-coating can handle very high loads. The change applies to valve depressors without CPS-functionality.
This means that it concerns depressors in position:
- Engine B6304T4 (Ulev2) Exhaust, inlet
- Engine B6324S4 (Pzev) Exhaust, inlet
- Engine B6324S5 (Ulev) Exhaust
If needed the DLC-coated depressors can also be used on older engines.
