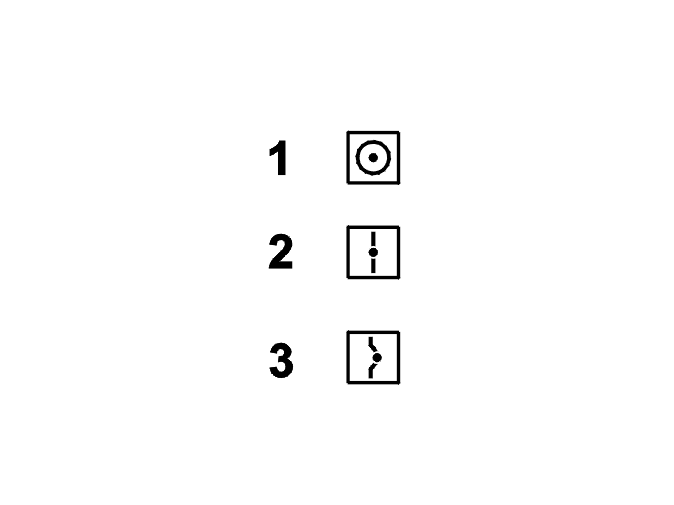

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Courtesy of VOLVO CARS CORPORATION

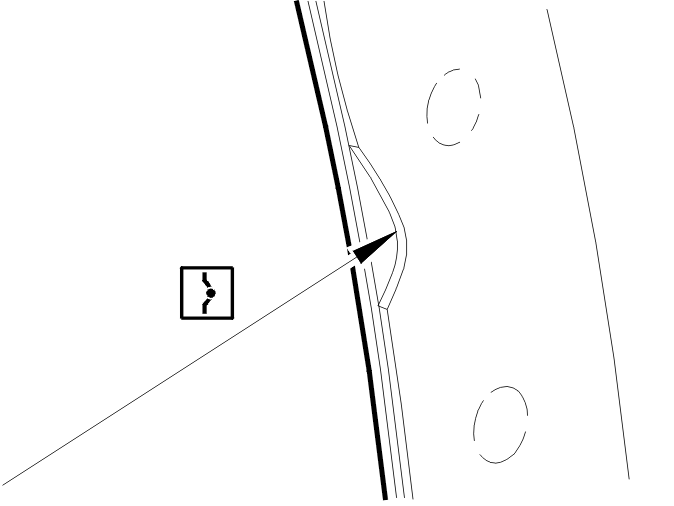

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess as shown.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension shown.

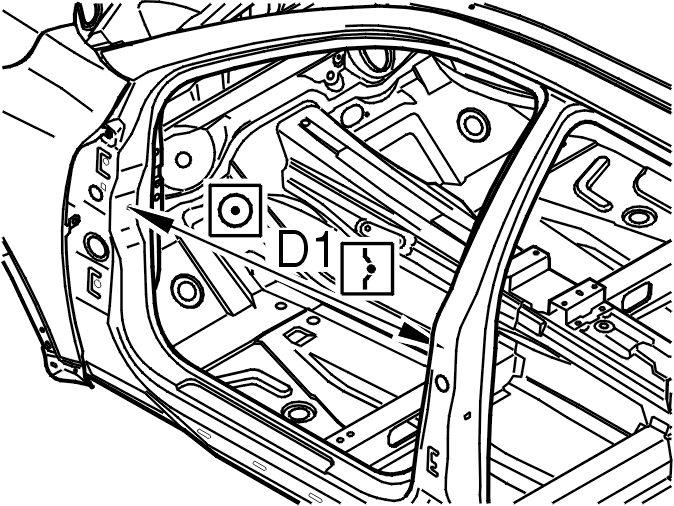

Fig 2: Front Door Opening Measurement Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

D1 = 946 mm

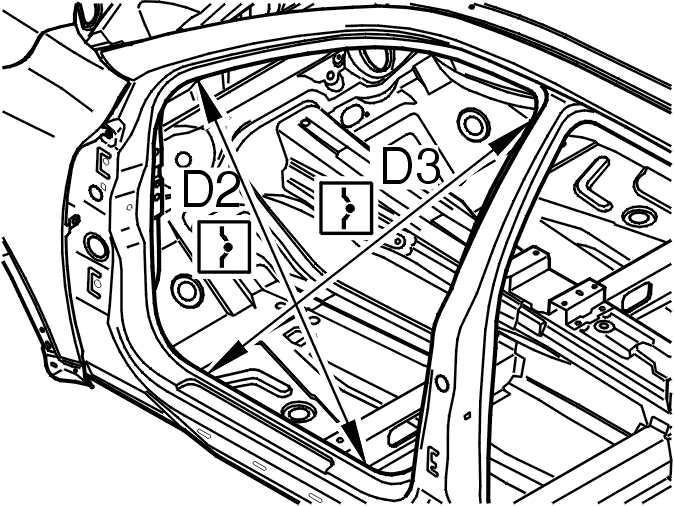

Fig 3: Front Door Opening Measurement Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

D2 = 918 mm

D3 = 1351 mm

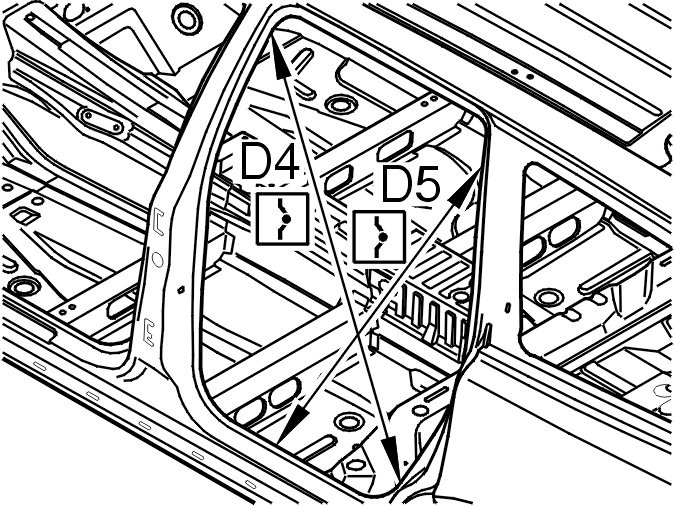

Fig 4: Rear Door Opening Measurement Locations

Courtesy of VOLVO CARS CORPORATION

D4 = 1046 mm

D5 = 1150 mm

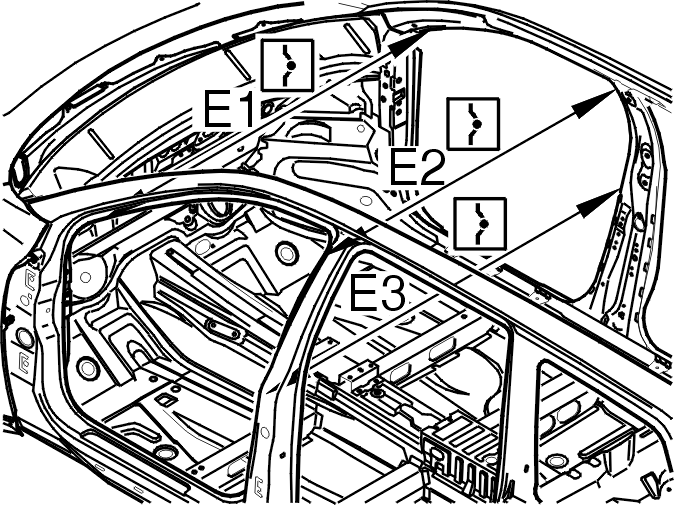

Fig 5: A-Pillar And B-Pillar Position Measurement Locations

Courtesy of VOLVO CARS CORPORATION

E1 = 1446 mm

E2 = 1276 mm

E3 = 1546 mm

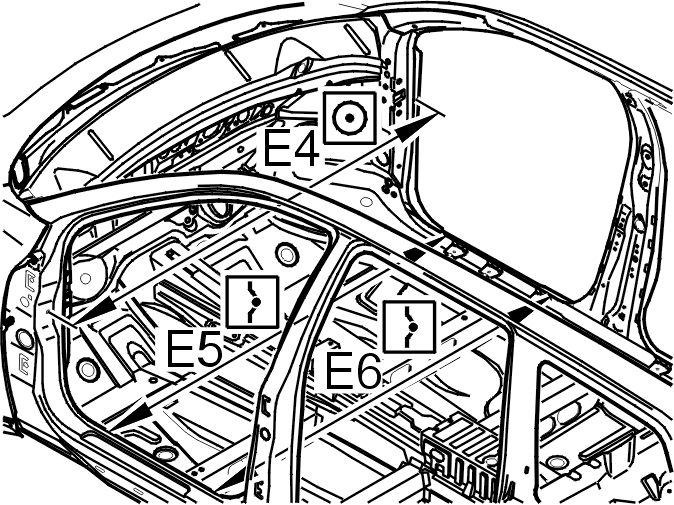

Fig 6: A-Pillar And Side Sill Position Measurement Locations

Courtesy of VOLVO CARS CORPORATION

E4 = 1570 mm

E5 = 1478 mm

E6 = 1478 mm

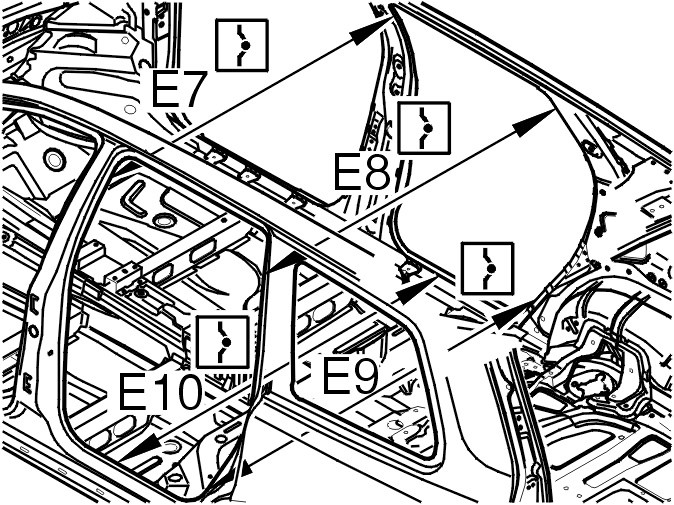

Fig 7: B-Pillar, C-Pillar, And Side Sill Position Measurement Locations

Courtesy of VOLVO CARS CORPORATION

E7 = 1307 mm

E8 = 1342 mm

E9 = 1490 mm

E10 = 1478 mm
