2003 Volvo XC70FACTORY OEM SERVICE PROCEDURE

Adapter connection

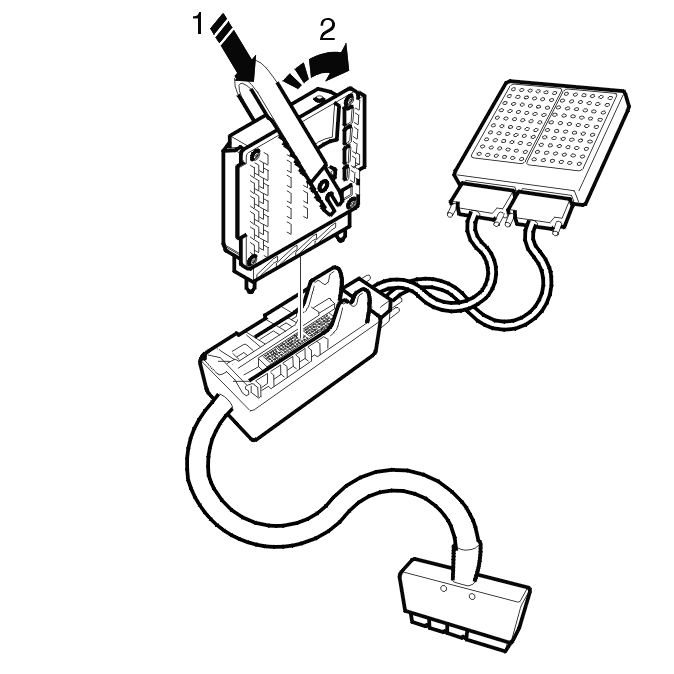

Fig 1: Identifying Adapter
GLL103014Courtesy of VOLVO CARS OF NORTH AMERICA.
  • Check that no pins or sockets are damaged on the connector.
  • Gently press adapter 9511504 down into the grooves inside the control module box. Press to the limit position.
  • Insert tool 9995722 around the adapter.
  • Move the upper section of the tool forwards as far as it will go. Pull the tool up.
