2003 Volvo XC70FACTORY OEM SERVICE PROCEDURE

Rear End, Alignment Dimensions

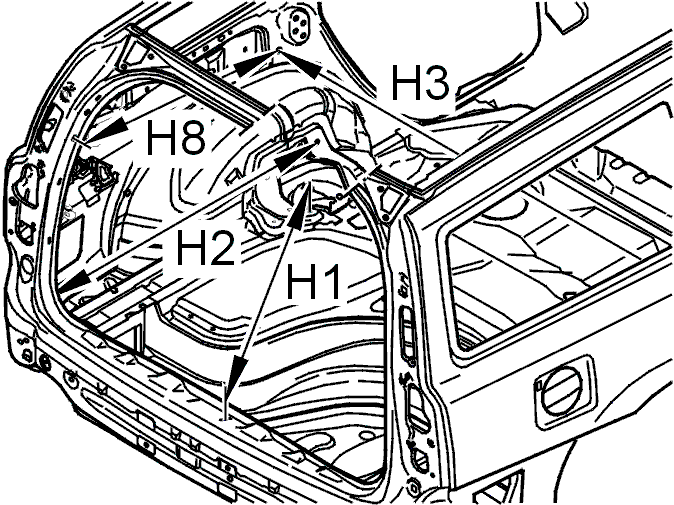

Fig 1: Rear End Position Measurement Locations (1 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

H1 = 981 mm

H2 = 937 mm.

H3 = 1472 mm

H8 = 963 mm

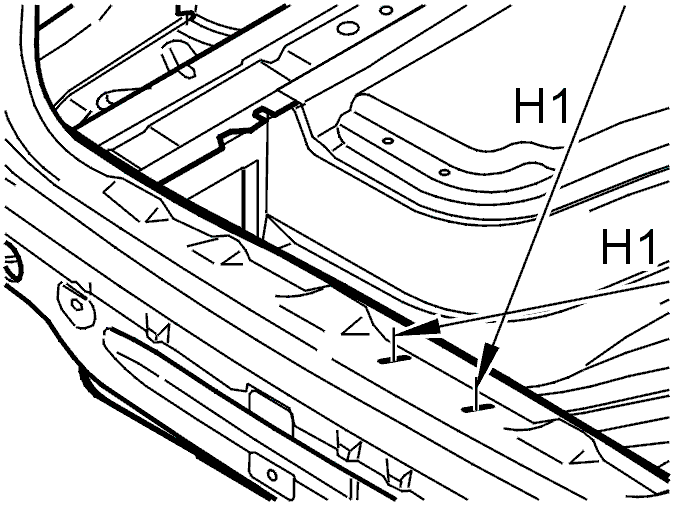

Fig 2: Rear End Position Measurement Locations (2 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.
