2003 Volvo V70 T-5, AutomaticFACTORY OEM SERVICE PROCEDURE

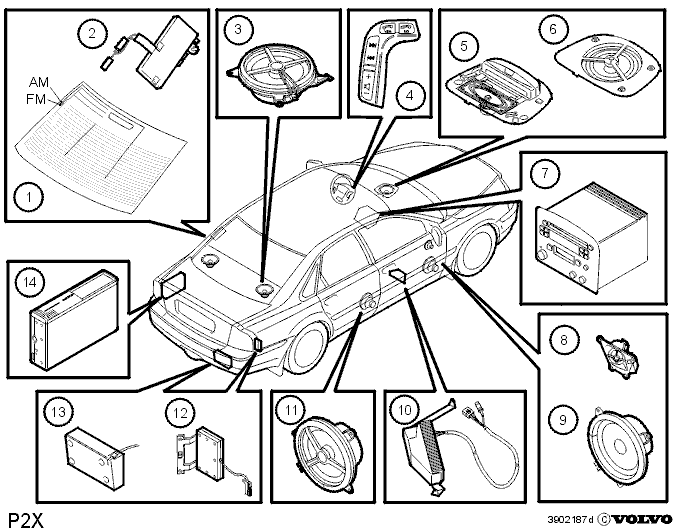

Location of components
- Radio antenna. Integrated in the rear windshield on the S60/S80, in the left-hand side window on the V70/V70XC
- Antenna amplifier FM/AM, located in the D-post
- Loudspeakers, positioned in the parcel shelf (D-post V70/V70XC)
- Keypad in the steering wheel for audio and telephone
- Center loudspeaker with display for cars with the Road Traffic Information module (RTI)
- Center loudspeaker for cars without a Road Traffic Information Module (RTI)
- Audio module (AUM) - Sound unit audio
- Door-mounted loudspeakers front (treble)
- Door-mounted loudspeakers front (bass/mid-range)
- External amplifier, positioned under the right-hand front seat
- Rear door-mounted loudspeakers
- Antenna amplifier for the bumper antenna
- FM antenna integrated in the bumper
- CD changer audio.
