Checking wiring

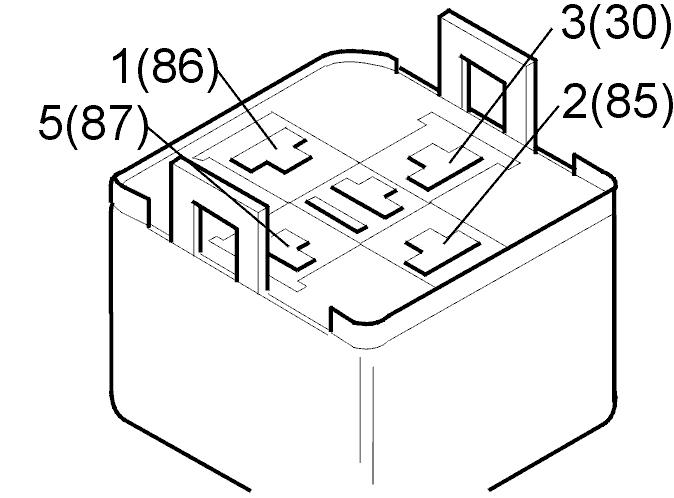

Check the signal cable between engine control module (ECM) terminal #10 and system relay terminal #2. Check for an intermittent short-circuit to ground Short-circuit to ground, intermittent faults . Check for an open-circuit according to Open-circuit, intermittent faults . Remedy if necessary.
Try a new system relay if no fault is found during the above fault-tracing.
Other information
- To connect the breakout box, see Connecting the breakout box. EMS 2000 .
