Checking wiring
Check the engine control module (ECM) and intake air temperature (IAT) sensor connectors for contact resistance and oxidation according to Contact resistance and oxidation .
Check in particular for damage, or loose terminal pins.

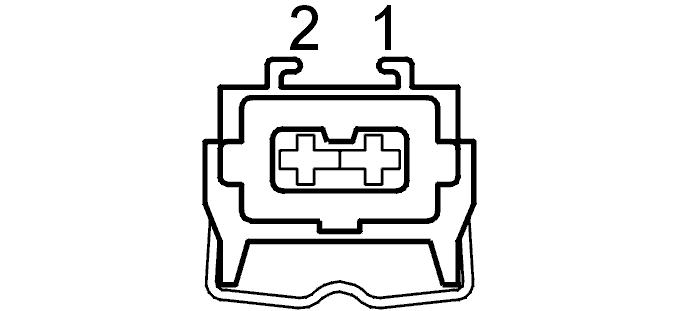

Check the signal cable between engine control module (ECM) terminal 48 and intake air temperature (IAT) sensor terminal 1 for an intermittent short-circuit to supply voltage. Remedy according to Short-circuit to supply voltage, intermittent faults and for an intermittent open-circuit Open-circuit, intermittent faults .
Check the ground lead between engine control module (ECM) terminal 79 and intake air temperature (IAT) sensor terminal 2 for an intermittent open-circuit. Remedy according to Open-circuit, intermittent faults .
Other information
- To replace the intake air temperature (IAT) sensor, see Replacing the intake air temperature sensor
- To connect the breakout box, see Connecting the breakout box. EMS 2000 .
