Checking wiring and terminals

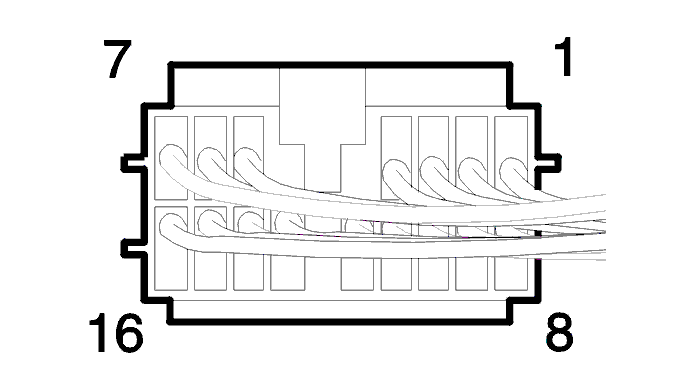

Check the DSA control module and engine control module (ECM) connectors for contact resistance and oxidation according to Contact resistance and oxidation
FENIX 5.1
- Check the cable between the DSA control module terminal 5 and engine control module (ECM) terminal 41 for an intermittent open-circuit according to Open-circuit, intermittent faults
. Check for an intermittent short-circuit to ground according to Short-circuit to ground, intermittent faults
. Check for an intermittent short-circuit to supply voltage according to Short-circuit to supply voltage, intermittent faults
.
Check that the cable is not too close to sources of interference such as electric motors, ignition cables, carphone cables etc.
- Applies to cars with automatic transmission: Check the cable between engine control module (ECM) terminal 41 and automatic transmission control module (TCM) terminal 38 for an intermittent short-circuit to ground according to Short-circuit to ground, intermittent faults
and for an intermittent short-circuit to supply voltage according to Short-circuit to supply voltage, intermittent faults
.
Check that the cable is not too close to sources of interference such as electric motors, ignition cables, carphone cables etc.
EMS 2000
- Check the cable between the DSA control module terminal 5 and engine control module (ECM) terminal 36 for an intermittent open-circuit according to Open-circuit, intermittent faults
. Check for an intermittent short-circuit to ground according to Short-circuit to ground, intermittent faults
. Check for an intermittent short-circuit to supply voltage according to Short-circuit to supply voltage, intermittent faults
.
Check that the cable is not too close to sources of interference such as electric motors, ignition cables, carphone cables etc.
Other information
- To connect the breakout box for DSA, see Connecting the breakout box. DSA .
- To connect the breakout box for FENIX 5.1, see Connecting the breakout box. FENIX 5.1 .
- To connect the breakout box for EMS 2000, see Connecting the breakout box. EMS 2000 .
