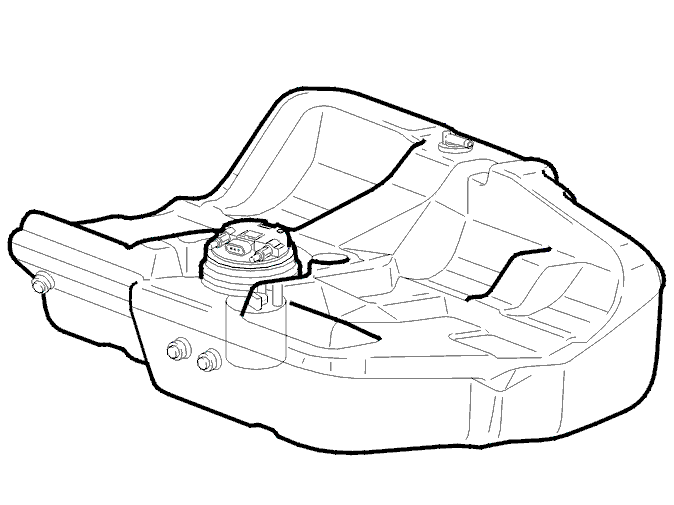

Fig 1: Identifying Fuel Pump In Fuel Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel pump:

in the fuel tank.

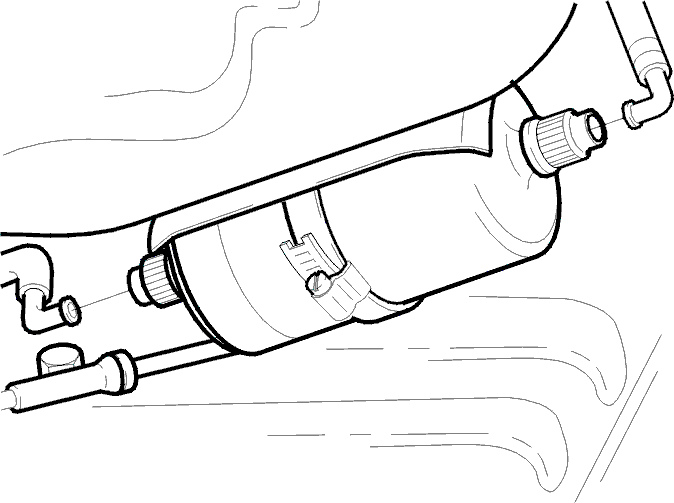

Fig 2: Identifying Fuel Filter By Left Rear Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel filter:

by the left rear wheel.

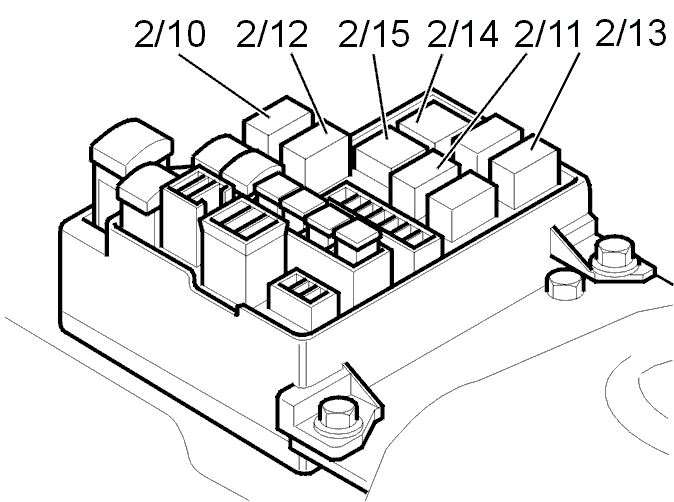

Fig 3: Identifying Integrated Relay/Fusebox In Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Relays and fuses:

In the integrated relay / fusebox in the engine compartment.

2/10	Air conditioning (A/C) relay
2/11	Engine cooling fan (FC) relay, low-speed
2/14	System relay
2/15	Engine cooling fan (FC), high-speed (only applies to cars with air conditioning (A/C))

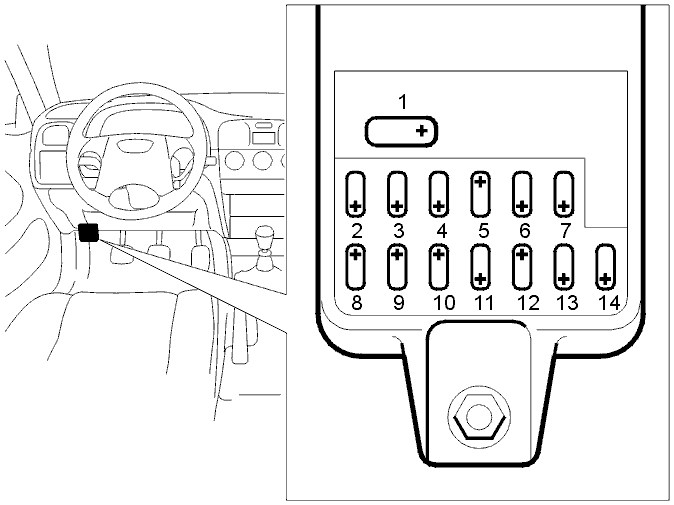

Fig 4: Identifying Integrated Relay/Fusebox In Passenger Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

In the integrated relay / fusebox in the passenger compartment.

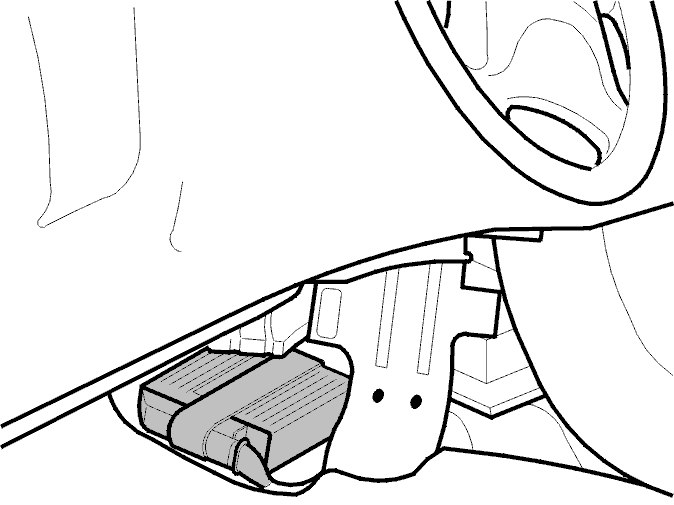

Fig 5: Identifying Engine Control Module (ECM) On Center Console Under Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Engine control module (ECM):

On the center console under the dashboard.

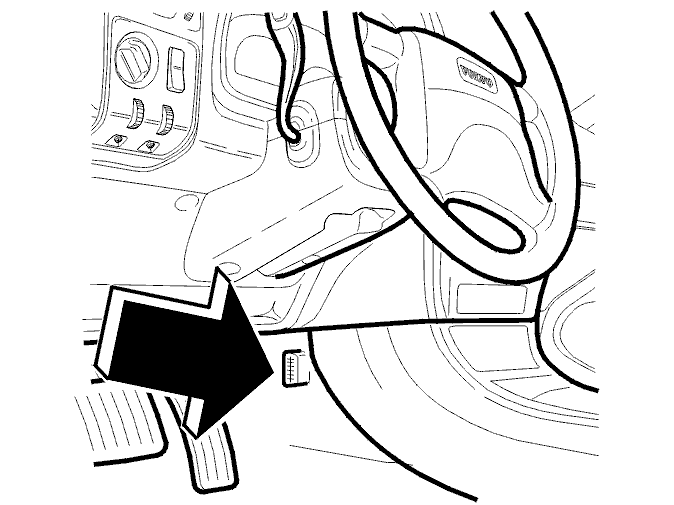

Fig 6: Identifying Data Link Connector (DLC)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Data Link Connector (DLC):

on the left-hand side of the center console (left-hand drive cars); on the right-hand side of the center console (right-hand drive cars).
