2003 Volvo S80 BaseFACTORY OEM SERVICE PROCEDURE

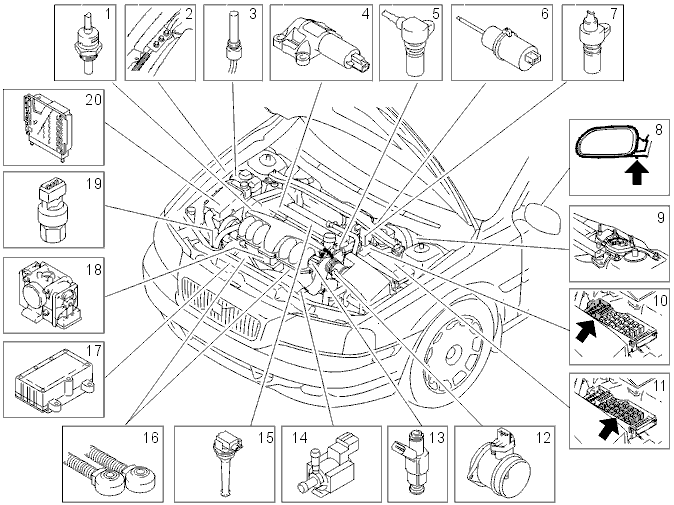

Location of components
- Engine coolant temperature (ECT) sensor
- Ground terminal
- Coolant level sensor
- Camshaft reset valve
- Camshaft position sensor (CMP)
- Brake pedal sensor
- Engine speed (RPM) sensor
- Outer temperature sensor
- Power supply terminal
- Fusebox
- Relay box
- Mass air flow (MAF) sensor
- Injector
- Canister purge (CP) valve
- Ignition coil
- Knock sensor (KS)
- Engine cooling fan (FC) control module
- Throttle unit
- A/C pressure sensor
- Engine control module (ECM).
