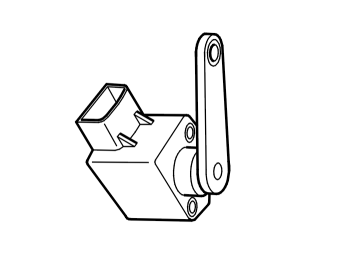

Position sensor, suspension
There are two position sensors at the rear suspension. The position sensor measure the position of the right and left-hand control arms in relation to the car body. The vertical position of the shock absorber is calculated based on this position. The sensors are supplied with 5 V by the suspension module (SUM). When the vehicle is stationary, the output signal from the sensors is approximately 2-3 V. When there is vertical movement the signal will oscillate around these values; the greater the movement the greater the deviation.
The values move in different directions on the left and right-hand sides. Upwards body movement results in increased voltage on the left-hand side and a voltage drop on the right-hand side.
There are diagnostics for the position sensors, which must be calibrated after replacement.
