Design And Function: Discharge

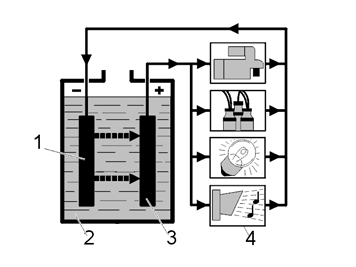

The process during discharge
- Negative plate: Pure lead is converted to lead sulphate
- Electrolyte: The sulphuric acid is converted to water
- Positive plate: Lead oxide is converted to lead sulphate
- Power consuming components.
During discharge, the lead in the negative plate is converted to lead sulphate (PbSO4 ).
The lead dioxide (PbO2 ) in the positive plate is also converted to lead sulphate. During the discharge process, sulphuric acid (H2 SO4 ) is consumed while water (H2 O) is created. This reduces the density of the electrolyte.
The density drops throughout the discharge process and can be gauged to determine the condition of the battery. The electrolyte in a fully charged battery has a density of 1.28 g/cm3 . The density of the electrolyte in a fully discharged battery is 1.10 g/cm3 .
