Diagnostic Trouble Code (DTC) Information

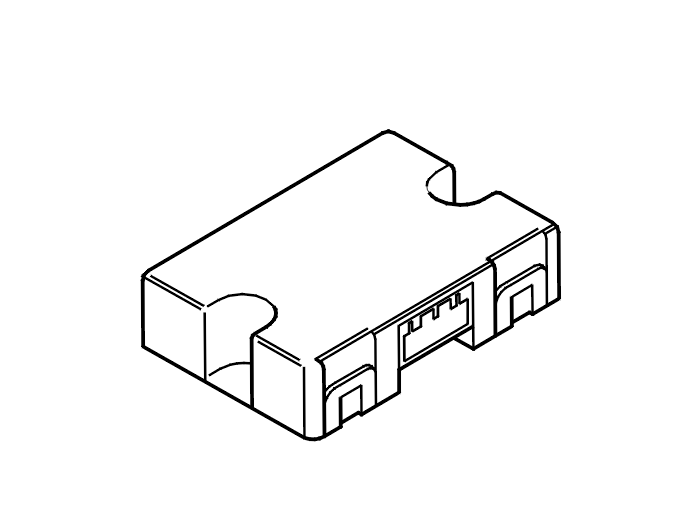

IMM-122 control module
Condition
To indicate their status (whether the control module is new or not) all new control modules (replacement parts) are delivered with diagnostic trouble code (DTC) IMM-122 active. After entering the PIN code this code is automatically erased.
Possible Source
- Defective immobilizer control module.
- Faulty programming procedures.
- New immobilizer control module, not initiated.
Fault symptom[s]
- The indicator lamp in the combined instrument panel lights until initiation is complete.
- The engine does not start. (The starter motor does not operate).
