Drive shafts, installing: Install

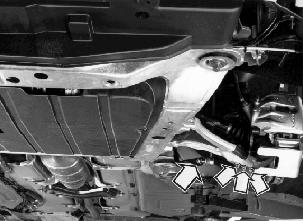

- Suspension arm to ball joint. Use new nuts.NOTE:
Check that ball-joint seating in suspension arm is clean and free of grease.
Tighten from inside and out to 18 Nm +120° .
, use a protractor 9512050 .
Apply rustproofing agent to area between ball joint, suspension arm and nuts correctly and precisely. Use rustproofing agent P/N. 1161432-8.
- Link arm to anti-roll bar with new nuts, tighten to 50 Nm (37 ft. lb.).
