2003 Volvo C70 2.3 53, StandardFACTORY OEM SERVICE PROCEDURE
Installing the engine control module (ECM)
- Check that no pins or sockets are damaged on the connector.
- Carefully press the control module down into the grooves on the inside of the control module box. Press to the limit position.

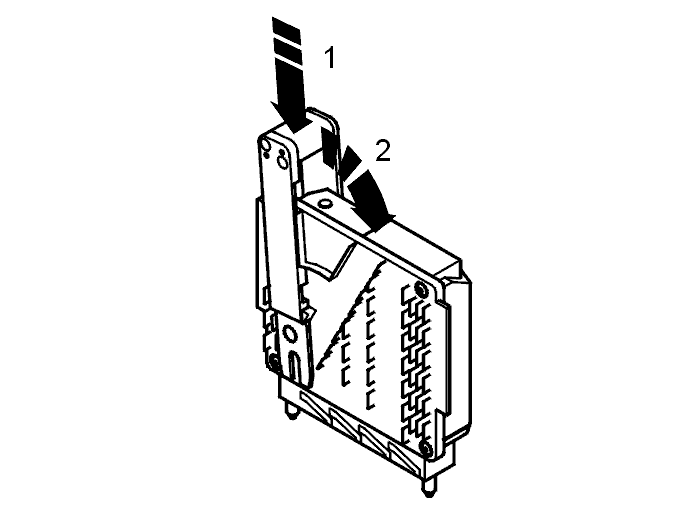

- Insert tool 9995722 around the control module.
- Move the upper section of the tool forwards as far as it will go. Pull up the tool.
- Press the cover into place over the control modules.
- Check that the air ducts are correctly positioned.
