2001 Volvo S40FACTORY OEM SERVICE PROCEDURE
Intake System Leak Test
- Inspect all tube connections. Ensure each is undamaged and connected fully with clamp tightened. Check hose between the charge air cooler and Idle Air Control (IAC) valve for damage and cracking. Charge air cooler is installed in front of radiator. Replace if necessary.

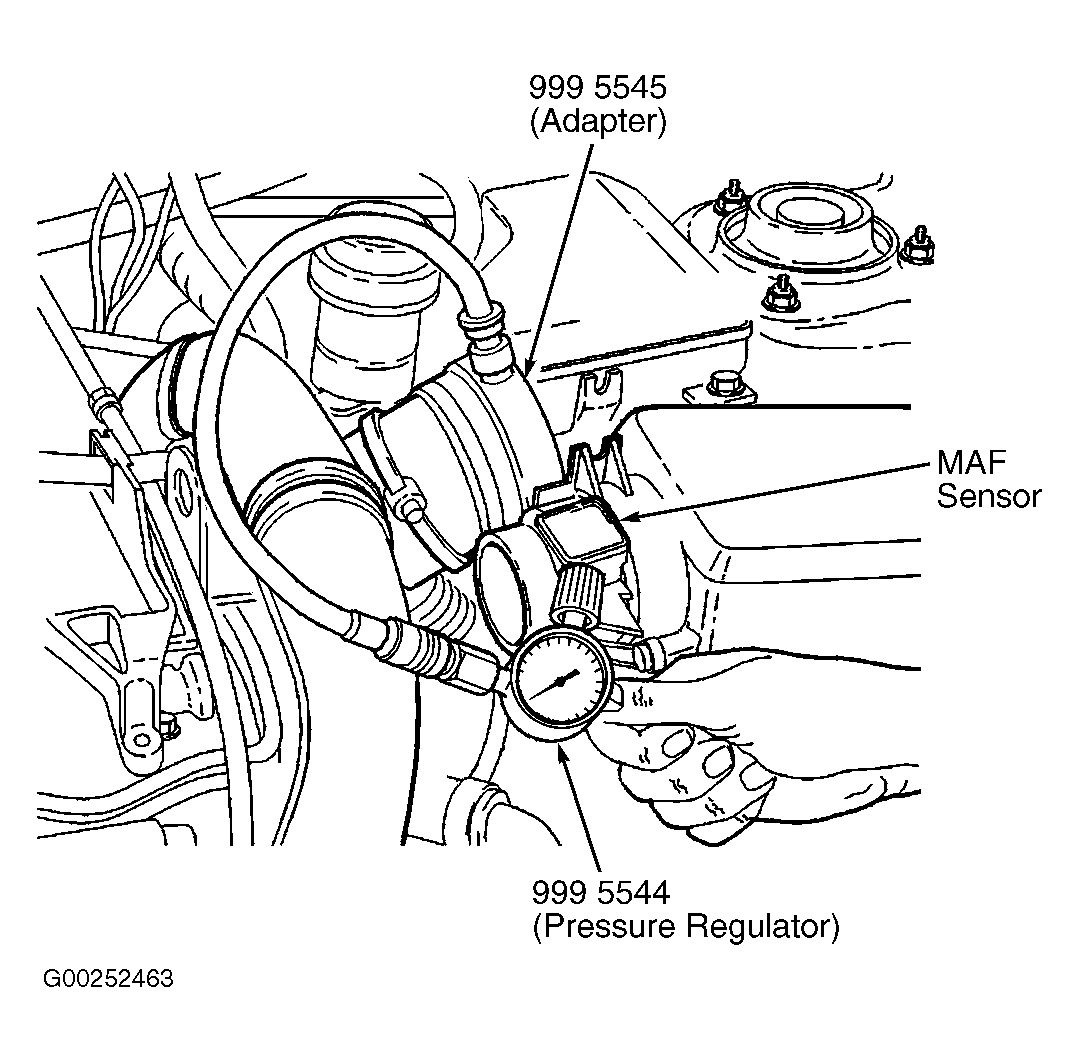

- Disconnect fresh air intake hose from Mass Air Flow (MAF) sensor. Connect Adapter (999-5545) and Pressure Regulator (999-5544) to intake hose. See Fig 1. Seal crankcase ventilation hose using a hose clip and remove oil filler cap. See Fig 2. Disconnect lower hose from canister purge valve.
