2001 Volvo S40FACTORY OEM SERVICE PROCEDURE
Removing engine control module bracket
- Switch off the ignition.

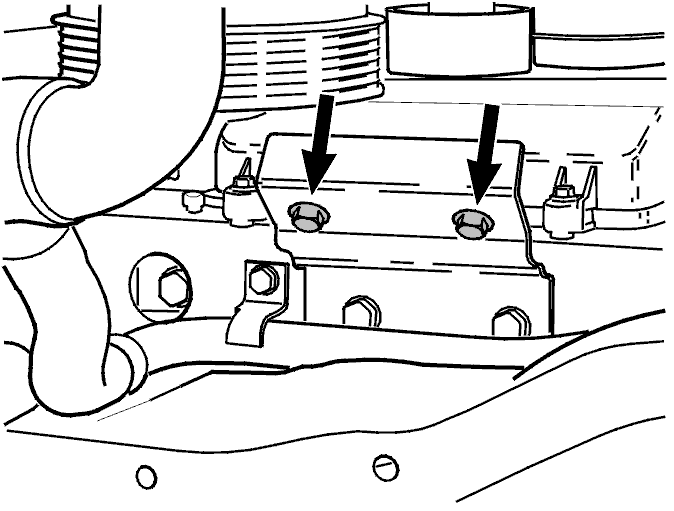

- Remove the upper screws (2 pcs.) that hold the engine control module bracket.
- Remove the front and right splash guard.

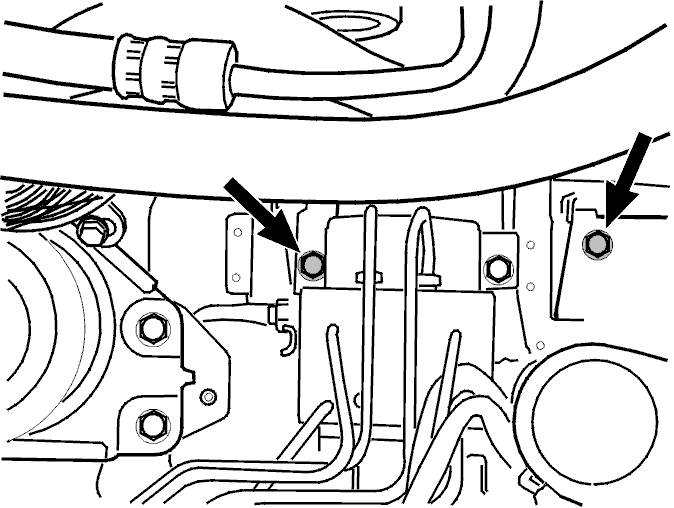

- Remove the lower screws (2 pcs.) that hold the engine control module bracket.
- Lift up the control module from the engine compartment.
