1999 Volvo S70 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Removal
- Ignition OFF. Wait engine cooling fan to stop running.
- Remove cover of ECM box and pull to one side. See Figure-Figure .

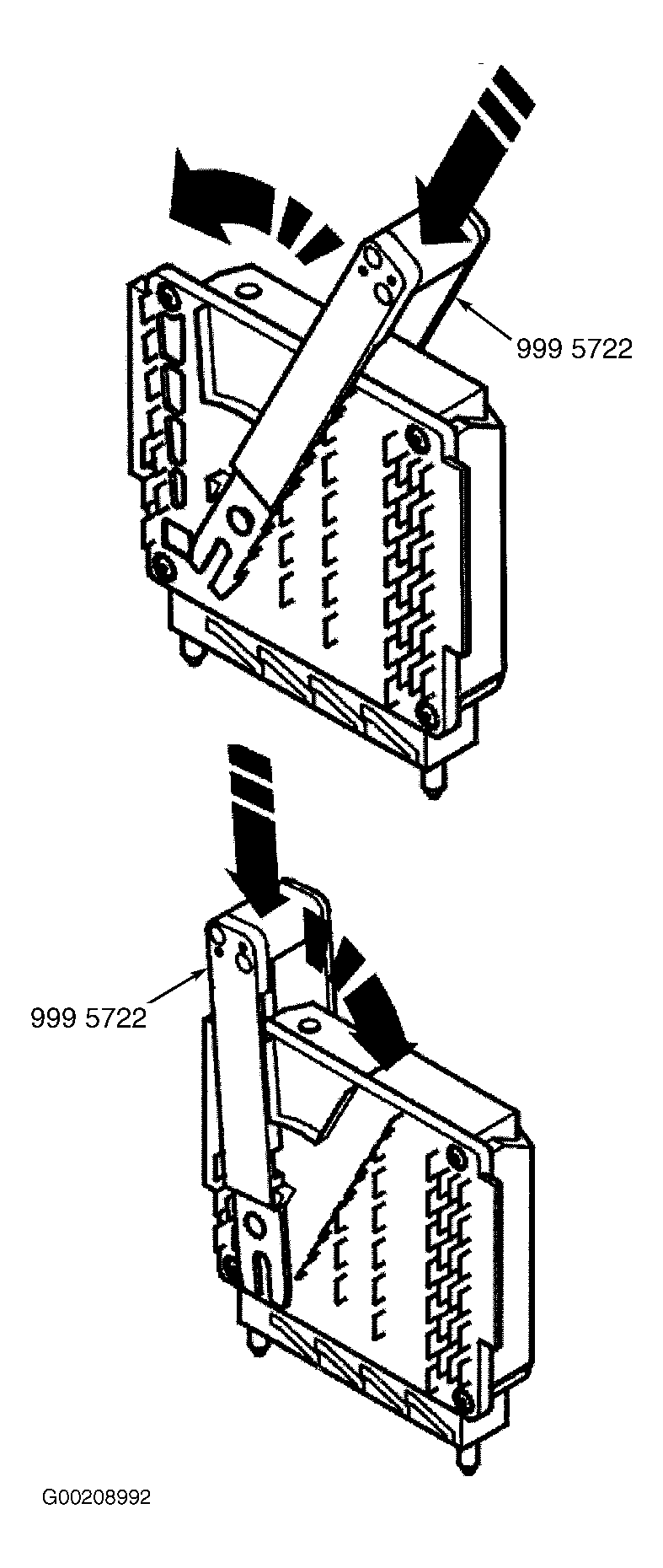

- Place Special Tool (999 5572) or equivalent puller around ECM. See Fig 1. Move upper section of puller as far backward as it will go.
- Pull upward and carefully lift control module up and out.
CAUTION:
DO NOT touch control module electrical terminals with fingers. Static electricity can permanently damage control module.
