Front Measurement

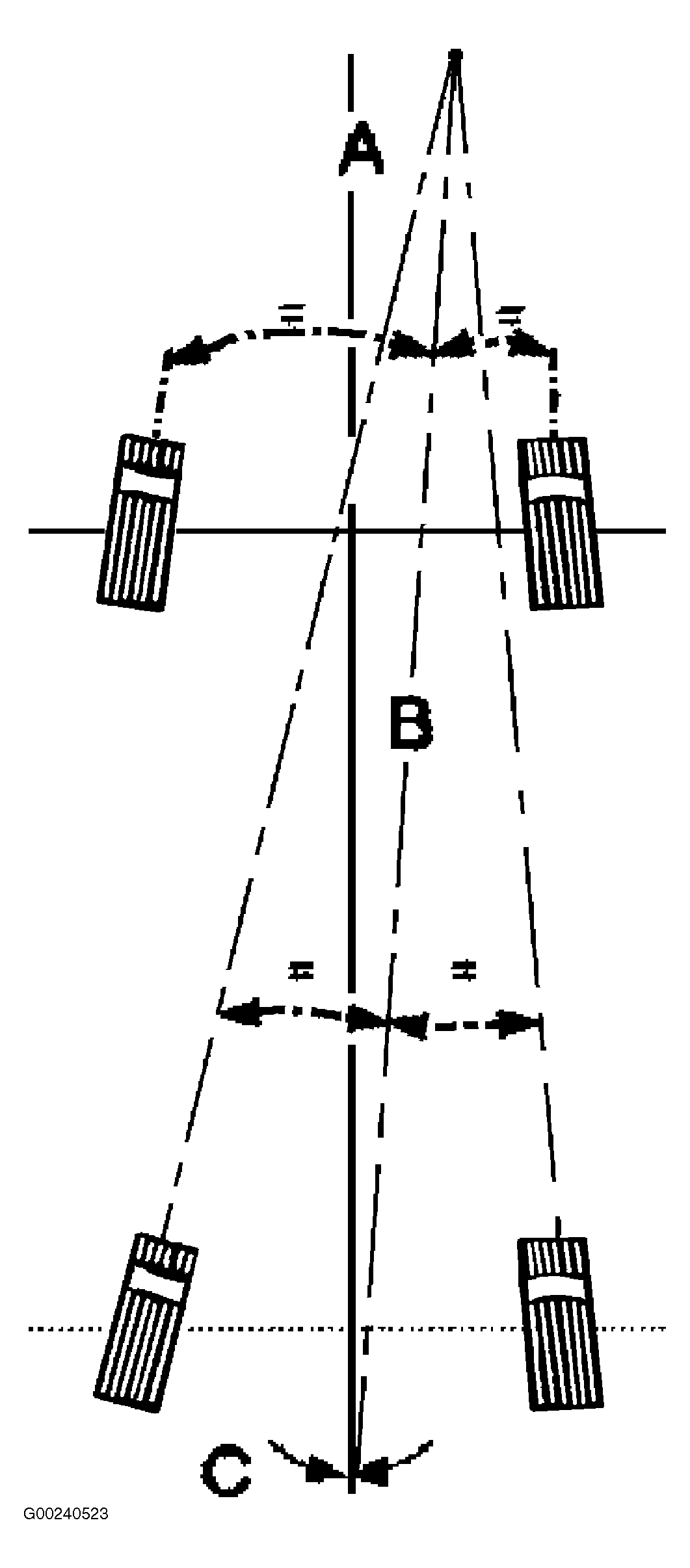

Check that the instruments are adjusted in relation to each other on the front and rear axles. Front wheel toe-in is adjusted in relation to the car's thrust line. Thrust line is the line created when the rear wheels toe-in angles are equally divided. See Fig 1 . The difference between the wheel symmetry line and the thrust line is called the thrust angle. This angle may deviate by a maximum of 15° from the symmetry line.
Center and lock steering wheel. Check the front wheel toe-in. Check measurement against specification. See WHEEL ALIGNMENT SPECIFICATIONS . Adjust as needed. See TOE-IN ADJUSTMENT .
