Checking intake system: Remove/disconnect
- tool 9995545 and pressure regulator 9995544 from fresh air hose
- hoses from EVAP valve
- connector

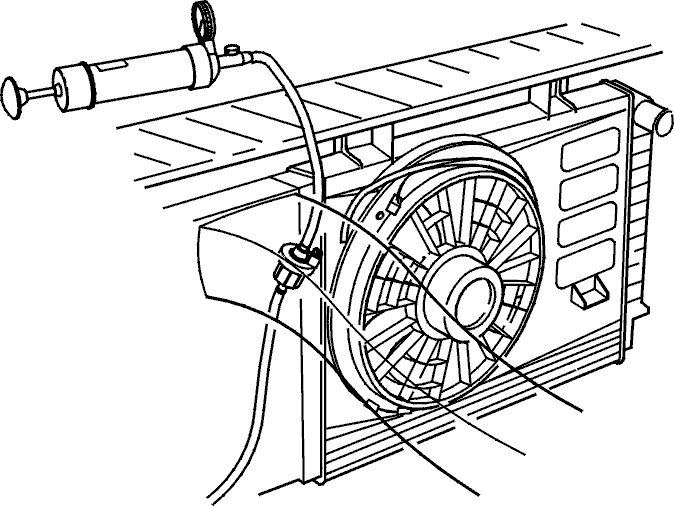

- Connect hose from vacuum pump 9995843 to connection point under connector.
- Pump up vacuum
- Vacuum gauge should indicate steady value.
- If vacuum falls, replace EVAP valve.
Reinstall valve, hoses, soundproofing and connector on completion of check. Use clamp 9814215 and new hose clip, P/N 97 81 65-9, when installing.
