1993 Volvo 850 L5-2.4L VIN 55 B5254SFACTORY OEM SERVICE PROCEDURE
Toe-In

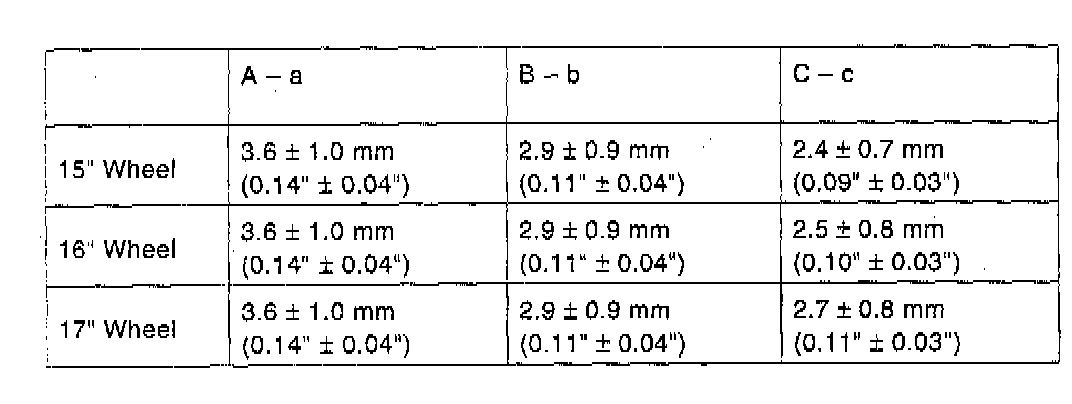

Adjust toe-in by altering length of tie rods (track rods) after undoing locknuts. Increasing tie rod length increases angle and vice versa. Correct values are shown in table above.
NOTE: Length of tie rods must not differ by more than 2 mm (0.08 inch) as measured between end of thread and locknut. Treat threads with anti-rust agent, P/N 1161432-8, after tightening nuts.
