1992 Volvo 240 GL, StandardFACTORY OEM SERVICE PROCEDURE
Additional Service Information: Notes
- With gear selector in Park, depress brake pedal.
- Move gear selector to desired position.
- If gear selector DOES NOT MOVE, check fuse #12.

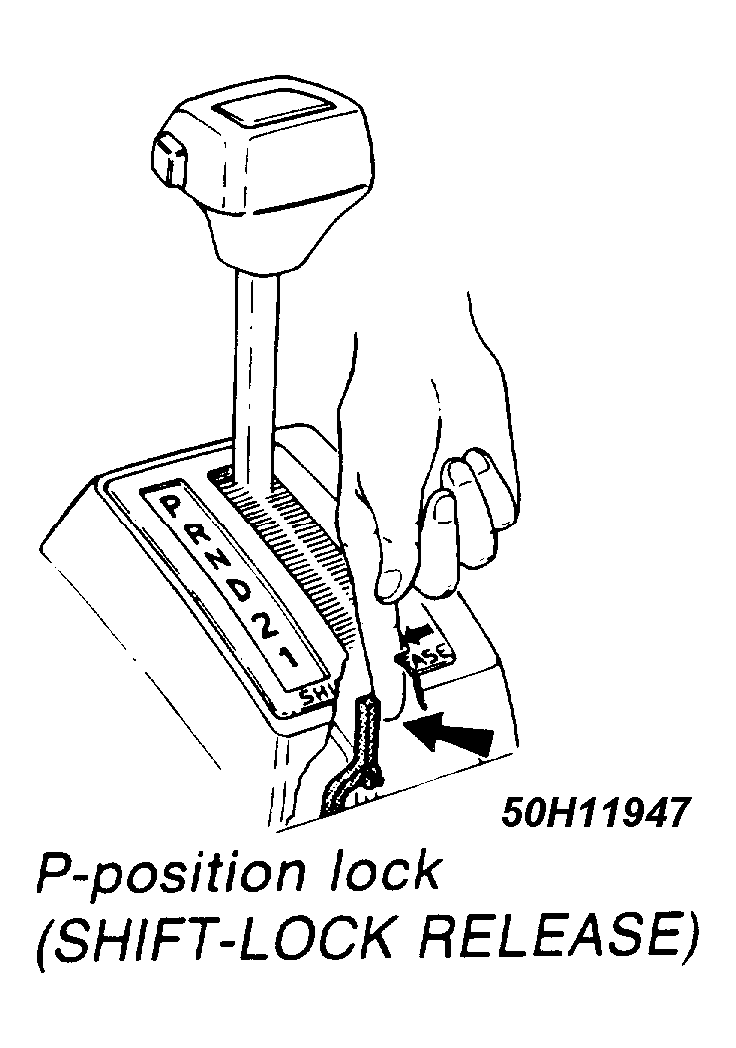

- TO MANUALLY RELEASE gear selector, push finger between brushes at base of shifter and push catch to the left. See Fig 1 .
- Select a gear.
NOTE:
1993 models have a button located next to shifter.
