1990 Volvo 760 GLE, AW71FACTORY OEM SERVICE PROCEDURE
Basic Throttle Setting Adjustment
NOTE:
If basic throttle setting is adjusted, throttle position will change. Therefore, throttle switch must be adjusted whenever basic throttle setting is adjusted. See THROTTLE SWITCH
under THROTTLE CONTROLS in this article.

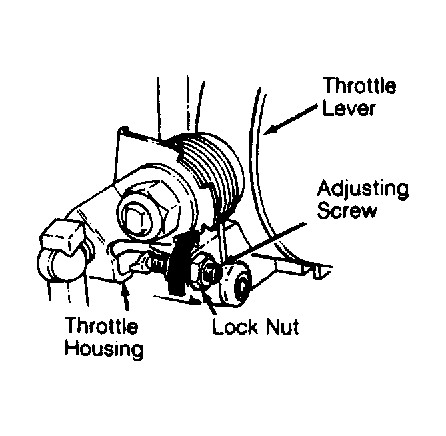

- Loosen basic throttle setting adjustment screw lock nut. See Fig 1 . Turn screw until throttle is completely closed.
- On 240, 240 DL, 740 GL and GLE models, tighten adjustment screw it touches throttle lever and then turn an additional 1/2 turn.
- On 740 Turbo, 760 GLE and 760 Turbo models, tighten adjustment screw it touches throttle lever and then turn an additional 1/4 turn.
- On all models, tighten lock nut making sure not to change adjustment. Recheck basic throttle setting.
