2021 Volkswagen ID.4 1st EditionFACTORY OEM SERVICE PROCEDURE

Overview - Driver Information System Control Module With Display Unit

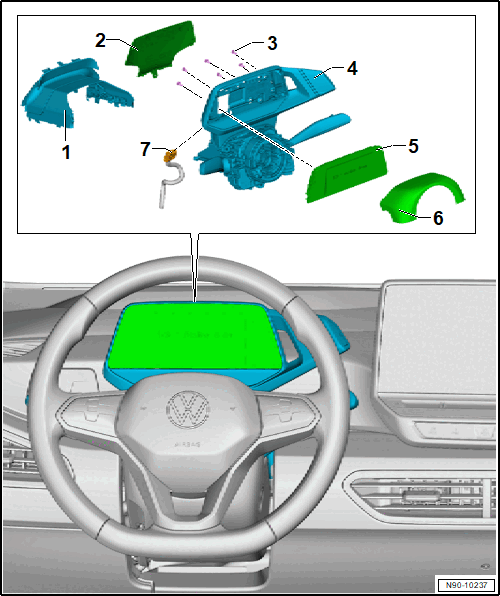

Fig 1: Exploded View Of Driver Information System Control Module With Display Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Cluster Gap Cover
- Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
Trim for Driver Information System Control Module with Display Unit -J1254-
Bolt
- 3 Nm
- Quantity: 6
Steering Column Electronics Control Module -J527-
- Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
Driver Information System Control Module with Display Unit -J1254-
- Refer to Driver Information System Control Module with Display Unit -J1254-, REMOVING AND INSTALLING .
Upper Steering Column Trim Panel
- Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
Connector for the Driver Information System Control Module with Display Unit -J1254-
