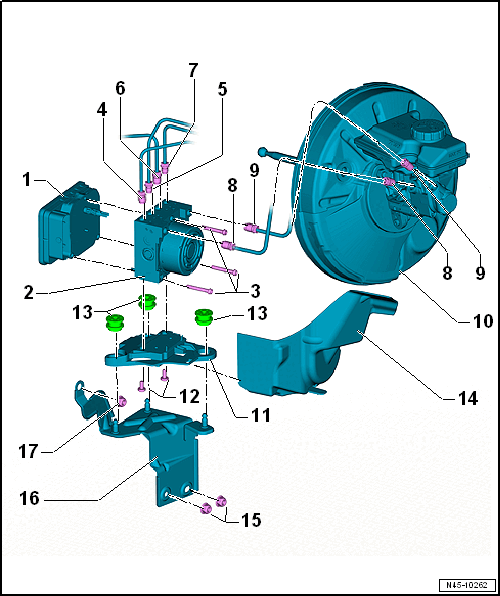

Overview - Control Module And Hydraulic Unit
- ABS Control Module -J104-
- Removing and installing. Refer to ABS CONTROL MODULE AND ABS HYDRAULIC UNIT, GASOLINE ENGINE, REMOVING AND INSTALLINGĀ .
- ABS Hydraulic Unit -N55-
- Removing and installing. Refer to ABS CONTROL MODULE AND ABS HYDRAULIC UNIT, GASOLINE ENGINE, REMOVING AND INSTALLINGĀ .
- TORXĀ®
Bolt
- 1. Step: Preliminary tightening specification 1 Nm to 1.5 Nm (to install the seal)
- 2. Step: final tightening specification: 2.5 Nm
- Install the new TORXĀ® bolt in two steps switching back and forth.
- Brake Line
- 14 Nm
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
- To the right rear brake caliper
- Brake Line
- 14 Nm
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- To the left front brake caliper
- Brake Line
- 14 Nm
- To the right front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
- Brake line
- 14 Nm
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- To the left rear brake caliper
- Brake Line
- 14 Nm
- Identification: 6 mm diameter and tube fitting with a M12 x 1 thread
- Brake master cylinder/primary piston circuit to the ABS Hydraulic Unit -N55-
- Brake Line
- 14 Nm
- Identification: 6 mm diameter and tube fitting with a M12 x 1 thread
- Brake master cylinder/secondary piston circuit to the ABS Hydraulic Unit -N55-
- Brake Booster
- Removing and installing
- Bracket
- Bolt
- 8 Nm
- Rubber Buffer
- Heat Shield
For allocation. Refer to the Parts Information
- Hex Nut
- 20 Nm
- Bracket
- Hex Nut
- 20 Nm
