ATF Level, Checking: Checking
-- Connect the Vehicle Diagnostic Tester and identify the vehicle in Guided Functions .
-- Select check ATF level .
Let the transmission cool down if the fluid temperature is higher than 45 °C (113 °F).
- The engine is idling and the selector lever is in "P".
-- Move the Drip Tray For Workshop Cranes or Used Oil Collection and Extraction Unit: SMN372500 under the transmission near the ATF check plug.

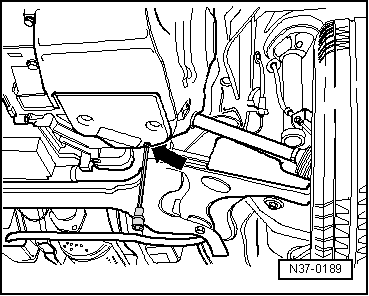

-- Remove the ATF check plug -arrow-.

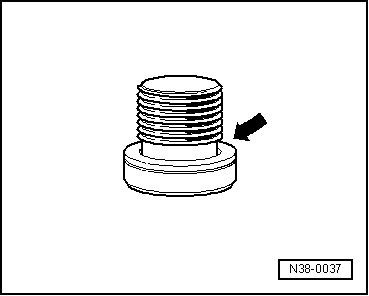

-- Always replace the gasket -arrow- for the bolt.
