Control Module/Digital Sound System Amplifier, Removing And Installing: Removing
-- Raise the front seat into its highest position and then move it all the way back.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

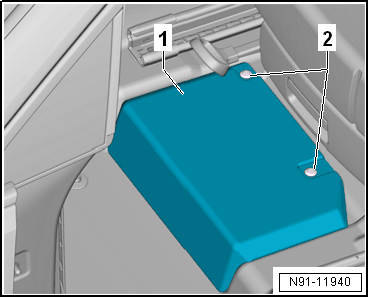

-- Remove the expanding rivets -2-.
-- Slide the cover -1- evenly in the direction of travel and remove it.

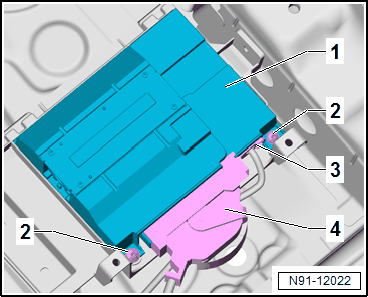

-- Release and disconnect the connector -3- from the Digital Sound System Control Module -J525- -1-.
-- Insert the : VAS6223/9 -1- onto the MOST bus connector -2-.
-- Release and disconnect the connector -4- from the Digital Sound System Control Module -J525- -1-.
-- Remove the bolts -2-.
-- Pivot the Digital Sound System Control Module -J525- -1- rearward out of the bracket.
