Digital Sound System Control Module, Removing And Installing: Removing

The amplifier and the Digital Sound System Control Module -J525- -1- are inside the luggage compartment behind the left side trim panel.

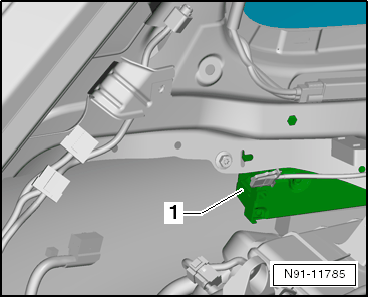

Fig 1: Identifying Digital Sound System Control Module -J525- -1-, Installation Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If the control module is replaced, select the "Replacement" function for the appropriate control module in "Guided Fault Finding"  .

Connect the Vehicle Diagnostic Tester to do this.

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Remove the left side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANELS, REMOVING AND INSTALLING .

Vehicles with Rear Heater and A/C Unit

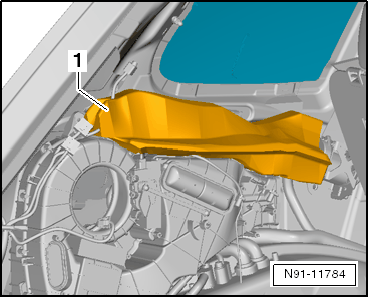

Fig 2: Identifying Noise Insulation Foam Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation foam piece -1-.

-- Remove the bolts -arrows- from the heater and A/C Unit.

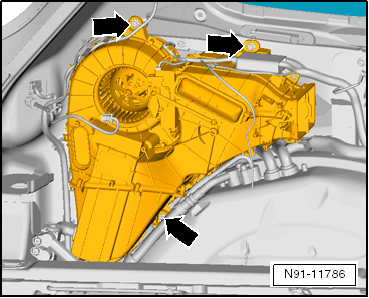

Fig 3: Heater/Air Conditioner Housing And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the heater and A/C Unit in direction of -arrow-. The wire connections and hoses remain connected.

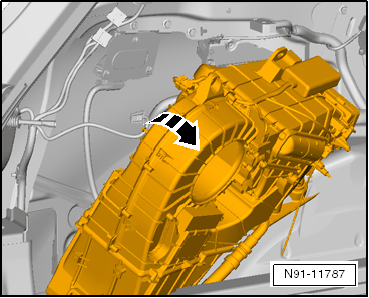

Fig 4: Move The Heat/Air Conditioner Housing In -Direction Of Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continued for all vehicles

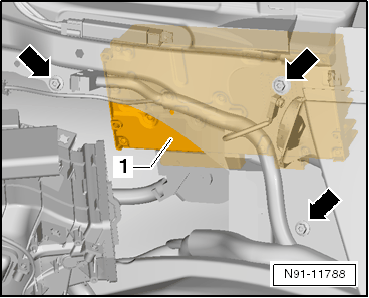

Fig 5: Identifying Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

-- Remove the Digital Sound System Control Module -J525- and mount.

-- Disconnect the connector from the amplifier.

-- On the "RNS 850" versions, install the Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9  on the fiber-optic cable pulled off the Digital Sound System Control Module -J525-.
