Abs Control Module And Abs Hydraulic Unit, Removing And Installing, RHD: Removing

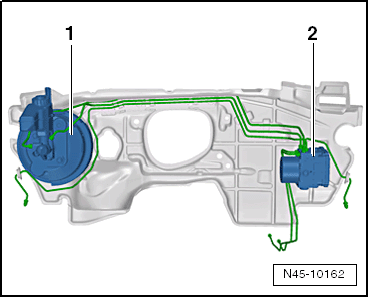

Component location of the ABS Hydraulic Unit -N55- and the ABS Control Module -J104- in RHD vehicles:
1 - Brake Booster with Master Brake Cylinder
2 - ABS Hydraulic Unit -N55- and ABS Control Module -J104-
Risk of destroying the brake lines by bending.
- Never forcefully bend the brake lines in the hydraulic unit area.
-- Read and note the present control module code.
-- On vehicles with a coded radio, note the code. Retrieve it if necessary.
-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the battery tray -1-. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

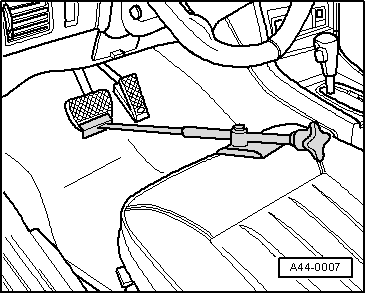

-- Insert the Brake Pedal Actuator:VAG1869/2 .
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

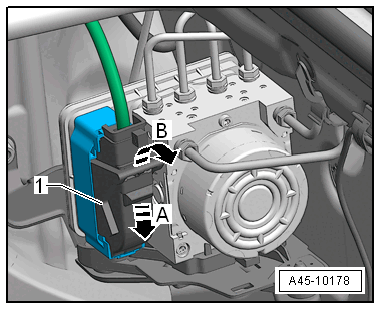

-- Press the locking mechanism downward -arrow A-.
The illustration shows the installation position of the ABS Hydraulic Unit -N55- and the ABS Control Module -J104-.
-- Release the connector -arrow B-.
-- Remove the connector -1-.
-- Attach the bleeder bottle bleed hose -1- to the left front brake caliper breather valve.
-- Open the breather valve.

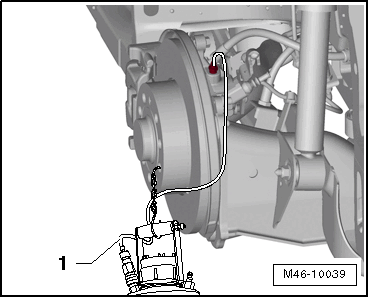

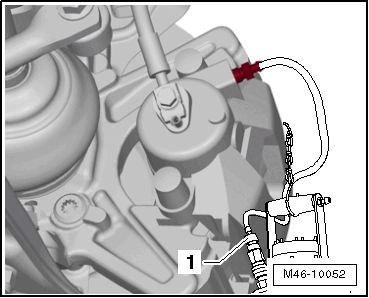

-- Attach the bleeder bottle bleed hose -1- to the left rear brake caliper breather valve.
-- Open the breather valve.
-- Push the brake pedal at least 60 mm using the Brake Pedal Actuator:VAG1869/2 .
-- Close the left front and left rear bleeder valves.
-- Do not remove the Brake Pedal Actuator:VAG1869/2 .
-- Place enough lint-free cloths under the ABS Control Module -J104- and the ABS Hydraulic Unit -N55-.
Pay attention that brake fluid does not run on the ABS Control Module -J104- contacts.

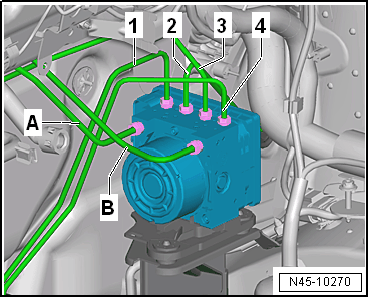

-- First label both brake lines from the brake master cylinder -A- and -B-.

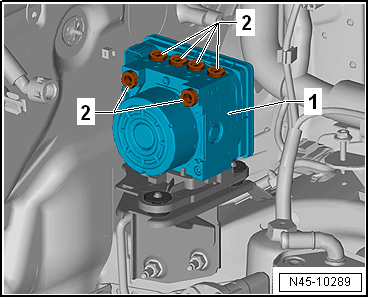

-- Remove both the brake master cylinder brake lines -A- and -B- from the ABS Hydraulic Unit -N55-.
-- Immediately seal the threaded holes with the plugs from the assembly repair kit 5Q0 698 311.
-- Label the remaining brake lines (brake caliper) and remove. Seal the threaded holes -2-.
-- Place the dust caps for the bleeder valves on the brake lines.

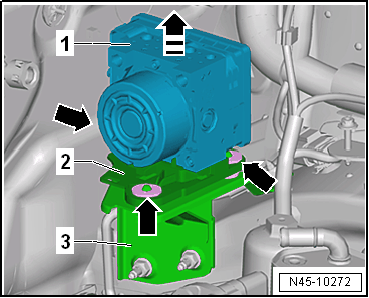

-- Remove the ABS Hydraulic Unit -N55- -1- together with the bracket -2- in the -direction of the arrow-.
-- This will remove the rubber buffers -arrows- from the bracket stud bolts -3- at the same time.
-- Guide out the hydraulic unit from the vehicle.
