2019 Volkswagen Arteon SEL PremiumFACTORY OEM SERVICE PROCEDURE
Lane Change Assistance Control Module - J769-/Lane Change Assistance Control Module 2 - J770-, Removing and Installing: Removing: Notes
- Remove the rear bumper cover. Refer to Rear Bumper; Bumper Cover, Removing and Installing.

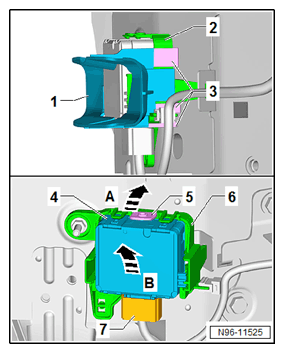

- Release the retaining tabs -3- on the shield -1-. -->
- Remove the shield -1- from the bracket -2- toward the rear.
- Release and disconnect the connector -7-.
- Release the retainer -5- from the bracket in the direction of -arrow A-.
- Pivot the lane change assistance control module -4- in direction of -arrow B- out of the bracket -6- and remove.
- Remove the bracket -2- for the wire -3- from the bracket -1-.
- Remove the nut -4-.
- Release the retainer -arrow A- from the bracket -1-.
- Pivot the bracket -1- in the direction of -arrow B- out of the retainer on the body and remove.
