Control Module/Digital Sound System Amplifier, Removing And Installing: Installing

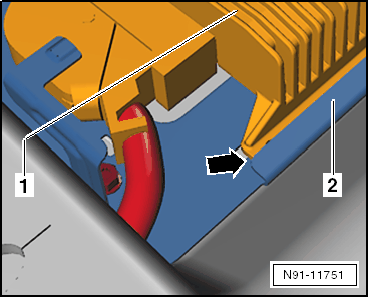

When installing, make sure the Amplifier -R12- -1- is pushed in correctly into the mount -2- on the module carrier.
Install in reverse order of removal.
-- Tighten the threaded connections to the tightening specification.
Make sure the cover is mounted correctly on the front edge of the module carrier when installing it.
Lock the cover by the left and right rear catches.
