Engine Number/Engine Specifications
Engine Number

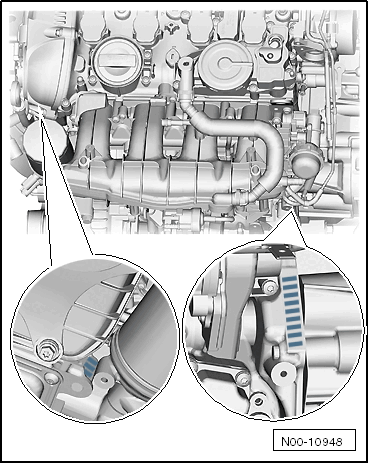

The engine number ("engine codes" and "serial number") are located on the engine/transmission joint.
The engine code is also stamped on the cylinder block behind the oil filter.
There is also a sticker glued to the timing chain cover with the "engine code" and "serial number".
The first three digits describe the mechanical structure of the engine and are stamped on the engine. The fourth letter describes the engine torque and output and is dependent on the engine control module. Four-digit engine codes are found on the type label and vehicle data label. It can also be read via the engine control module.
Vehicle data label locations.
| Codes | CPRA | CPKA | |
|---|---|---|---|
| Manufactured from | 06/2013 | 06/2013 | |
| Emissions values | PZEV SULEV | BIN 5 TIER 2 | |
| Displacement | liters | 1.8 | 1.8 |
| Output | kW at RPM | 125 at 4800 to 6200 | 125 at 4800 to 6200 |
| Torque | Nm at RPM | 250 at 1500 to 4750 | 250 at 1500 to 4750 |
| Bore | Diameter in mm | 82.5 | 82.5 |
| Stroke | mm | 84.1 | 84.1 |
| Compression ratio | 9.6:1 | 9.6:1 | |
| Research Octane Number (RON) | minimum | 95 unleaded (in exceptional cases, minimum 91 RON, but with reduced performance) | 95 unleaded (in exceptional cases, minimum 91 RON, but with reduced performance) |
| Injection system/ignition system | TFSI / SIMOS 12 | TFSI / SIMOS 12 | |
| Ignition sequence | 1-3-4-2 | 1-3-4-2 | |
| Turbocharger, Supercharger | Turbocharger | Turbocharger | |
| Variable valve timing | yes (Intake) | yes (Intake) | |
| Secondary Air Injection (AIR) | yes | yes | |
| Valves per cylinder | 4 | 4 | |
| Oil pressure control | yes | yes | |
